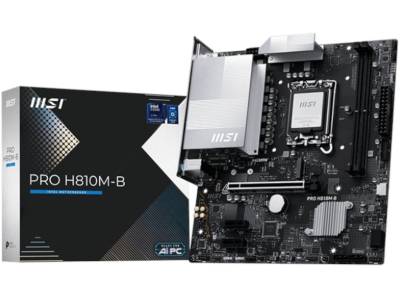

MSI H810M-B PRO DDR5 LGA1851 Micro-ATX Motherboard
Boost your productivity and performance with the MSI H810M-B PRO LGA1851 M-ATX DDR5 Motherboard, a high-performance platform designed for professionals, creators, and DIY PC enthusiasts. Supporting the latest Intel Core Ultra Series 2 processors, this Micro-ATX motherboard combines sleek aesthetics with cutting-edge technology. With PCIe 5.0 support and DDR5 memory capabilities up to 6400 MT/s, it handles multitasking, workstations, and light gaming with ease. Its silver color scheme fits effortlessly into a variety of chassis designs.
The MSI H810M-B PRO offers easy installation with EZ PCIe Clip II and EZ M.2 Clip II, a pre-installed I/O shield for precise setup, and reinforced PCIe steel slots for durability. Core Boost and Memory Boost technologies deliver stable power and high-speed memory performance. Advanced cooling, including Frozr AI Cooling and Cooling Wizard, maintains quiet, efficient operation. High-speed connectivity options include 2.5G LAN, USB 10Gbps Type-C, and Lightning Gen 4 M.2 storage. Studio-grade 7.1 HD audio and customizable RGB lighting complete a feature-rich motherboard ideal for building or upgrading a professional-grade PC.
Processor and Memory Support
Expansion and Storage Options
Audio and Networking
Cooling and Installation Ease
USB and Connectivity
Box Contents
| © 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | PROH810M-B |
| Chipset | INTEL H810 |
| CPU | Supports Intel Core Ultra Processors (Series 2) |
| LGA 1851 | |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6400 - 4800 (JEDEC) MT/s | |
| Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 6400 MT/s | |
| 1DPC 2R Max speed up to 6400 MT/s | |
| Supports Intel POR Speed and JEDEC Speed | |
| Supports Intel XMP 3.0 | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM | |
| The DIMM slots on this motherboard have double-sided latches. | |
| Onboard Graphics | 1x HDMI |
| Support HDMI 2.1, maximum resolution of 4K 60Hz | |
| 1x DisplayPort | |
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| 2x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 1x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| *Please refer to the manual for M.2 SSD heatsink restrictions. | |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 1x USB 10Gbps Type C (Front) | |
| LAN | Realtek 8125 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| LED FEATURE | 4x EZ Debug LED |
| 1x EZ Memory Detection LED | |
| BACK PANEL PORTS | DisplayPort |
| USB 2.0 | |
| USB 5Gbps Type-A | |
| 2.5G LAN | |
| Audio Connectors | |
| HDMI | |
| USB 2.0 | |
| OPERATING SYSTEM | Support for Windows 11 64-bit |
| PCB Info | mATX |
| 220mmx243.84mm | |
