VIGI-C330-4 specification sheet

Short Description

TP-Link C330 Vigi 3MP Outdoor Full-colour Bullet Network camera with 4mm Lens, 3D DNR, DWDR, 2304x1296 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, 2 IR LED 30m range, BLC / 3D DNR / HLC / SmartIR, 1 region ROI, ONVIF, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port, DC Power Port, Human & vehicle classification, Motion detection

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

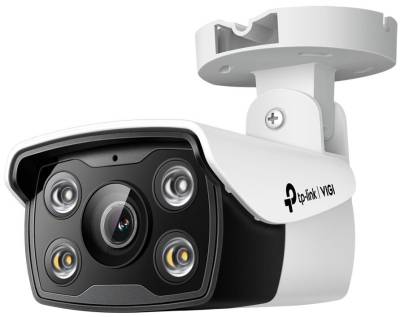

VIGI C330  VIGI 3MP Outdoor Full-Color Bullet Network Camera

• 3MP Super-HighDefinition : The camera comes with 3MP- more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color : Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set,obstructs the camera, or removes/abandons objects.
• Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
• IP67 Waterproof: Reliable IP67 for stable outdoor performance.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Features:

All TheColors, All The Time
3MP Outdoor Full-Color Bullet Network Camera VIGI C330

• High Definition
• Full-Color
• Human & Vehicle Classification
• Smart Detection
• Built-In Microphone
• Smart Vid
• Smart Video Coding
• PoE / 12V DC
• IP67
• Remote Monitoring
• ONVIF Ensures Compatibility

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

• Motion Detection
• Line-Crossing
• Intrusion Detection
• Object Abandoned Detection
• Object Removal Detection
• Camera Tampering

Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

SmartVid-Smart Video Enhancement
VIGIs professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

OutdoorPoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	VIGI-C330-4
CAMERA
Image Sensor	1/2.8" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.005 Lux, 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Lens	2.8 mm/ 4 mm/ 6 mm
Aperture	2.8 mm: F1.6
	4 mm: F1.6
	6 mm: F1.6
Lens Mount	M12
Viewing Angle	2.8mm: 107.5° / 57.2° / 128.7°(H / V / D)
	4mm: 89.1°/45.1°/106.9°(H/V/D)
	6mm: 55.1°/30.2°/64°(H/V/D)
IR Working Distance	30m
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4/6 mm
Aperture	F1.6
FOV	2.8 mm:
	Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
	4 mm:
	Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
	6 mm:
	Horizontal FOV: 55.1°, Vertical FOV:30.2°, Diagonal FOV: 64°
Lens Mount	M12
DORI Distance	2.8 mm:
	Detect: 52 m (170 ft)
	Observe: 22 m (71 ft)
	Recognize: 10 m (34 ft)
	Identify: 5 m (17 ft)
	4 mm:
	Detect: 70 m (230 ft)
	Observe: 29 m (96 ft)
	Recognize: 14 m (46 ft)
	Identify: 7 m (23 ft)
	6 mm:
	Detect: 100 m (327 ft)
	Observe: 41 m (136 ft)
	Recognize: 20 m (65 ft)
	Identify: 10 m (33 ft)
VIDEO
Max. Resolution	2304 x 1296
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2304x1296, 2048x1280, 1920x1080, 1280x720
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	704x576, 640x480, 352x288, 320x240
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	N/A
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: -90° to 90°
	Tilt: -90° to 90°
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR
	White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	N/A
Audio Input	N/A
Audio Output	N/A
Audio Compression	N/A
Audio Sampling Rate	N/A
Environment Noise Filtering	N/A
Audio Bit Rate	N/A
NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS
	RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
ONVIF	Yes
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Button	-
Video Output	-
On-board Storage	-
Built-in Microphone	Yes
Built-in Speaker	N/A
Audio	N/A
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	White Light Flashing, Message Push
Linkage Method	N/A
Output Notification	Message Push
GENERAL
Package Contents	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Operating Temperature	-30-60 °C
Storage Temperature	-40-60 °C
Storage Humidity	95% or Less (Non-Condensing)
Operating Humidity	95% or Less (Non-Condensing)
Dimensions( H X W X D )	174 x 78 x 70 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.26 Kg
Gross Weight	0.4 Kg
Power Consumption	12V DC: Max 5.4W
	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
	PoE (802.3af/at, class 0)
Protection	IP67
Product Dimensions (L x W x H)	174 x 78 x 71 mm
Certifications	CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution	3MP (2304 x 1296)
Video Streaming	Main Stream
	Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
