DS-K2M061 specification sheet

Short Description

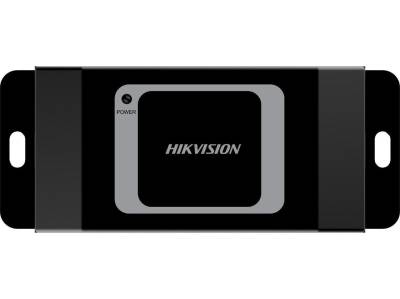

Hikvision K2M061 secure door control module, 1 lock control, 1 exit button, 1 door contact Input, 48 mm x 115 mm x 26 mm dimensions

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

DS-K2M061 - Secure Door Control Module

• Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
• Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
• Supports tampering alarm
• Supports RS-485 communication indicators to show the communication status
• 4-ch DIP switch supporting ID No. configuration
• Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
• Fire interface and exit button linkage

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-K2M061
Interface
Lock control	1
Exit button	1
Door contact input	1
General
Power supply	12 VDC
Working temperature	-40 °C to 70 °C
Working humidity	0% to 90%
Dimensions	48 mm x 115 mm x 26 mm (1.9" x 4.5" x 1.0")
Installation	Wall Mounting
