Specifications:
| © 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |

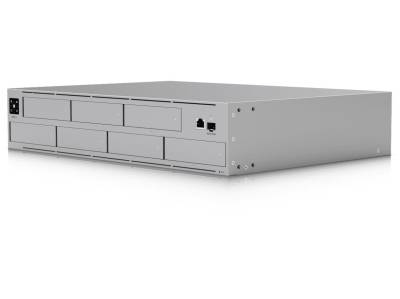

| Product Code | UNAS-PRO |
| Mechanical | |
| Dimensions | 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) |
| With mounting brackets: 9.5 kg (20.8 lb) | |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | Quad-Core ARM Cortex -A57 at 1.7 GHz |
| System memory | 8 GB |
| Management interface | Ethernet In-Band |
| Networking interface | (1) GbE RJ45 port |
| (1) 1/10 GbE SFP+ port | |
| RF interface | Bluetooth 4.1 |
| Power method | (1) Universal AC input, 100-240V AC, 3A Max, 50/60 Hz |
| (1) USP-RPS DC input, 11.5V DC, 13.91A | |
| Power supply | AC/DC, internal, 200W |
| Supported voltage range | 100-240V AC |
| Max. power consumption | 160W |
| Max. power budget for Drives | 135W |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV |
| LCM Display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| NDAA Compliant | Yes |
| LEDs | |
| Ethernet | Green: 1 Gbps |
| Amber: 10/100 Mbps | |
| SFP+ | White: 10 Gbps |
| Green: 1 Gbps | |
| HDD | White: disk detected |
| Amber: disk error | |
| RPS | Blue: ready |
| Application Requirements | |
| UniFi Drive | Version 1.16.0 and later |
