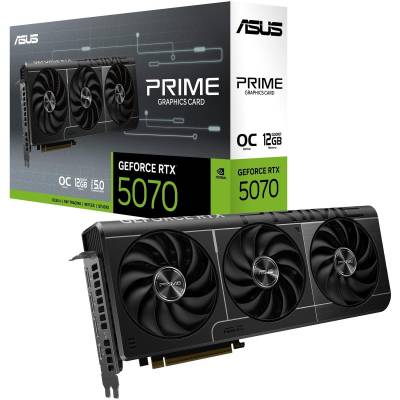

ASUS PRIME RTX5070-O12G specification sheet

Short Description

Asus Prime Geforce RTX 5070 OC Edition 12GB GDDR7 PCI-e 5.0 x16 Graphics card, 1005 TOPS AI performance, 2587MHz OC mode Engine clock, 6144 CUDA Core, 28 Gbps Memory Speed, 192-bit Memory Interface, 1x HDMI 2.1b, DisplayPort 2.1b, 4 Maximum Display support, 1x 16 pin Power connectors, 2.5 slot, SFF ready

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

ASUS Prime GeForce RTX 5070 OC Edition 12GB GDDR7

• AI Performance: 1005 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• OC mode: 2587 MHz (OC mode)/ 2557 MHz (Default mode)
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
• 2.5-slot design allows for greater build compatibility while maintaining cooling performance
• Dual-ball fan bearings last up to twice as long as standard sleeve bearings
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
• Auto-Extreme manufacturing process for precision and reliability
• GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring

Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

AI PERFORMANCE:

• SFF-Ready 2.5 Slot Design Compatible with small-form-factor builds
• Axial-Tech Fans Longer blades improve airflow and dispersion
• Phase-Change GPU Thermal Pad Optimal heat dissipation for GPU longevity
• Dual-Ball Fan Bearings Up to twice the lifespan of sleeve bearings
• Dual BIOS Toggle between Performance or Quiet modes
• GPU Tweak III Ultimate GPU tuning utility
• MuseTree Grow your dreams with AI magic
• Perfect PSU Companion ASUS Prime Gold 850W/750W

The Ultimate Platform for Gamers and Creators

• Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4
• New Streaming Multiprocessors Optimized for neural shaders
• Fourth-Gen Ray Tracing Cores Built for Mega Geometry
• AI-Enhanced Graphics and Performance NVIDIA DLSS 4 with Multi Frame Generation
• Game-Winning Responsiveness NVIDIA Reflex 2 with Frame Warp
• True-to-Life Graphics Full ray tracing with neural rendering
• Digital Humans and AI Assistants NVIDIA ACE
• Accelerate Your Creativity NVIDIA Studio creator tools and technology
• Enhance Any Video with AI NVIDIA Broadcast and ninth-gen NVIDIA Encoder
• Performance and Reliability NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
• The Ultimate Gaming Display Technologies NVIDIA G-SYNC

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Cooling - 2.5-slot Design
The Prime RTX 5070 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

• MaxContact Design MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2° C, in concert with an extensive heatsink array and powerful Axial-tech fans.
• Phase-Change GPU Thermal Pad By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Unmatched Reliability
GPU guard applying adhesive to the four corners of GPU

ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.

Engineering

• Dual BIOS Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
• Auto− Extreme Technology An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

Best PSU for the GeForce RTX 50 Series
Use the wattage calculator to estimate how much power you'll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ASUS PRIME RTX5070-O12G
Model	PRIME-RTX5070-O12G
Graphic Engine	NVIDIA GeForce RTX 5070
AI Performance	1005 TOPs
Bus Standard	PCI Express 5.0
OpenGL	OpenGL 4.6
Video Memory	12GB GDDR7
Engine Clock	OC mode: 2587MHz
	Default mode: 2557MHz (Boost Clock)
CUDA Core	6144
Memory Speed	28 Gbps
Memory Interface	192-bit
Resolution	Digital Max Resolution 7680 x 4320
Interface	Yes x 1 (Native HDMI 2.1b)
	Yes x 3 (Native DisplayPort 2.1b)
	HDCP Support Yes (2.3)
Maximum Display Support	4
NVlink/ Crossfire Support	No
Accessories	1 x Speedsetup Manual
	1 x ASUS Velcro Hook & Loop
	1 x Thank You Card
	1 x Adapter Cable (1 to 2)
Software	ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions	304 x 126 x 50 mm
	12 x 5 x 2 inch
Recommended PSU	750W
Power Connectors	1 x 16-pin
Slot	2.5 Slot
SFF Ready	Compatible
Note	* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration.
	* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
