RG-WALL-1600-Z5100-S specification sheet

Short Description

Reyee Ruijie New-Gen Cloud-Managed Firewall, RG-WALL-1600-Z5100-S, 15 Gbps Firewall Throughput of IPv4 packets, 2.3 Mpps Firewall Throughput (Packets per second), 1000 Gateway-to-Gateway IPSEC VPN tunnels

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

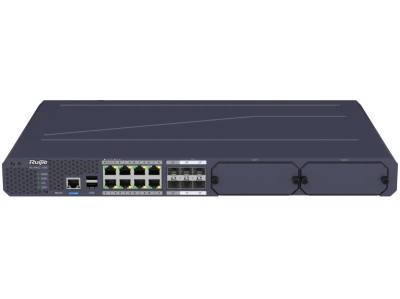

RG-WALL 1600-Z5100-S, Next-Generation Z Series Firewall
NGFW with flexible scalability, high security performance, simple configuration, cloud management, fit for network egresses of schools, SMBs, hospitals, governments, and data centers

• License-based scalability, firewall throughput scaling up to 10 Gbps
• Five-in-one firewall license, comprehensive network security defensecapability
• Cloud, make your business easy
• Intelligent policy manager ( port scan + traffic learning), simple firewalldeployment
• Policy simulation lab, policy optimization and execution after simulation, seamlessly protect your live networks
• Intelligent diagnostic center, one-click fault locating, saving time and effort

Features:

RG-WALL-1600-Z5100-S Ruijie Cloud-Managed Firewall
The RG-WALL 1600-Z5100-S Next-Generation Firewall, a robust security solution engineered to safeguard your enterprise network against evolving cyber threats. This advanced firewall integrates state-of-the-art technologies to deliver comprehensive protection, ensuring the integrity and reliability of your network infrastructure.

High-Performance Threat Prevention: Equipped with a multi-core processor, the RG-WALL 1600-Z5100-S offers exceptional throughput, enabling real-time detection and mitigation of complex threats without compromising network performance.

Comprehensive Security Services: Combines firewalling, intrusion prevention, antivirus, anti-spam, and web filtering capabilities into a single platform, providing layered defense against a wide spectrum of cyber attacks.

Advanced Application Control: Utilizes deep packet inspection to identify and manage applications traversing the network, allowing for granular policy enforcement and enhanced bandwidth utilization.

User Identity Awareness: Integrates seamlessly with authentication systems to apply security policies based on user identity, ensuring that access controls are both dynamic and context-aware.

Flexible Deployment Options: Supports various network environments with its versatile interface configurations, making it suitable for small to medium-sized enterprises seeking scalable security solutions.

New-Generation Z Series Enterprise-Level Firewalls
Flexible expansion, simplified deployment, and cloud O&M, fully unleashing security defense capability

* To ensure syslog security and system stability, please use Ruijie brand hard drives. Ruijie will not be responsible for any syslog loss or performance degradation resulting from the use of third-party hard drives.

Flexible Firewall Performance Scalability, Satisfying Service Upgrade and Development Demands
By adding software licenses, you can increase network throughput of RG-WALL 1600-Z5100-S by 3-10 Gbps. Each software license increases the throughput by 1 Gbps.

In addition, the high-performance free SSL VPN is provided, allowing up to 1000 users at no extra cost.

Five-in-One Firewall License for Comprehensive Network Security Defense
The five-in-one license for intrusion prevention (IPS), antivirus (AV), threat intelligence, URL filtering, and application identification enhances the network defense capabilities of your organization in an all-round way, dramatically improving the security of data and systems.

Port Scan + Traffic Learning, Simple Firewall Onboarding
During deployment, use Port Scan to automatically identify the IP address and port number of a service system, and then enable Traffic Learning to automatically detect the service access relationship on the live network. You can also generate access control policies based on ports with one click, and complete firewall onboarding without professional knowledge.

Policy Execution After Simulation, Policy Optimization Anytime
Verify policies using real traffic in Policy Simulation Space without affecting actual services or compromising network performance.

Apply policies to the live network with one click after verification.

One-Click Fault Locating in the Intelligent Diagnostic Center
The intelligent diagnostic center supports automated analysis of network faults and provides a one-stop troubleshooting wizard for O&M personnel to quickly locate and resolve faults.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RG-WALL-1600-Z5100-S
System Performance and Capacity	RG-WALL 1600-Z5100-S
Firewall throughput of IPv4 packets (1518-byte UDP packets)4	15 Gbps
Firewall throughput (packets per second)	2.3 Mpps
Concurrent sessions (TCP)	1000000
New sessions/second (TCP)	134000
Firewall policies	4000
SSL VPN throughput (1392-byte)	3 Gbps
Concurrent SSL VPN users (recommended maximum, tunnel mode)	1000
Application control throughput (HTTP 64K)	10 Gbps
IPsec VPN throughput (512-byte)	4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	1000
Note	All performance values are the maximum values and may vary depending on system configuration.
	The performance values of IPS (mixed traffic), application control, NGFW, and threat protection are measured with logging enabled.
	NGFW performance is measured with firewall, IPS, and application control enabled.
	Threat protection performance is measured with firewall, IPS, application control, and malware protection enabled.
	Firewall throughput is the maximum forwarding performance (1518-byte UDP packets) of hardware.
Hardware Specifications
Dimensions and Weight	RG-WALL 1600-Z5100-S
Product dimensions (W x D x H)	440 mm x 300 mm x 43.6 mm (17.32 in. x 11.81 in. x 1.72 in.)
Shipping dimensions (W x D x H)	545 mm x 450 mm x 130 mm (21.46 in. x 17.72 in. x 5.12 in.)
Product weight	4.44 kg (9.79 lbs)
Shipping weight	5.7 kg (12.57 lbs)
Form factor	1 RU rack
Port Specifications	RG-WALL 1600-Z5100-S
Fixed service port	8 x 10/100/1000BASE-T ports
	2 x 1GE SFP ports
	4 x 10GE SFP+ ports
Fixed management port	1 x RJ45 MGMT port (reusing Ge0/0)
	1 x RJ45 console port (RS-232)
USB port	2 x USB 2.0 ports
Storage	RG-WALL 1600-Z5100-S
Hard disk	No hard disk for factory delivery. A 1 TB SATA hard drive can be added.
	To ensure syslog security and system stability, please use Ruijie brand hard drives. Ruijie will not be responsible for any syslog loss or performance degradation resulting from the use of third-party hard drives.
Power Supply and Consumption	RG-WALL 1600-Z5100-S
Power supply	2 x pluggable power modules (one power module for factory delivery)
	l Rated input voltage: 100-240 V , 50-60 Hz
	l Rated input current: 2 A (maximum)
Max. Power Consumption	< 60 W
Environment and Reliability	RG-WALL 1600-Z5100-S
Operating temperature	0°C to 45°C (32°F to 113°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Operating humidity	40% RH to 65% RH (non-condensing)
Storage humidity	10% RH to 90% RH (non-condensing)
Noise level	36 dB
Operating altitude	0-5000 m (0-16404 ft.)
Compliance	EMC SZEM2404002506ATV
	LVD SZES2404002242AT
Software Specifications
Network	RG-WALL 1600-Z-S Series
Physical interface	Configuring interfaces as LAN/WAN interfaces , three modes for WAN interfaces: PPPoE, DHCP, and static IP , configuring the routing, transparent, or bypass mode for interfaces
Sub-interface	Configuring sub-interfaces and VLAN IDs
Bridge interface	Configuring interfaces in transparent mode as bridge interfaces
Aggregate interface	Configuring aggregate interfaces
Routing	IPv4/IPv6 static and dynamic routing, routing policy, Policy-based Routing (PBR), ISP address library-based routing, application-based routing, and egress load balancing
DHCP server	DHCP server functions
DNS server	Configuring DNS addresses for devices
DDNS	Multiple DDNS service providers supported
Link detection	Link detection and link detection logs
VPN	SSL VPN and IPsec VPN
VRRP	VRRP functions
Object	RG-WALL 1600-Z-S Series
Address and address group	Configuring IPv4/IPv6 address objects in IP address/range format
Zone	Configuring security zones
Application and application group	Configuring application types in application/application group mode
Service and service group	Configuring service objects , common default port services supported
Time plan	Configuring time objects , one-off time plans and cyclic time plans supported
ISP address library	Default ISP address libraries: China Telecom (CHN), China Mobile (CHN), China Unicom (CHN), CERNET (CHN), and Beijing Teletron (CHN) , customizing, importing, and exporting ISP address libraries
Virus protection template	Configuring content object templates , antivirus (AV) templates supported , configuring quick scan or deep scan , configuring templates based on protocols and directions , setting excluded viruses
Intrusion prevention template	Configuring content object templates , predefined Intrusion Prevention System (IPS) templates supported , customizing IPS templates , configuring rule filters based on objects, severity, protocols, and threat types , setting excluded rules
File filtering	Configuring content object templates , file filter templates (filtering by file type) supported
URL filtering	URL filtering
SSL proxy certificate	Adding, importing, deleting, viewing, and downloading SSL proxy certificates , configuring a global SSL proxy certificate
Server certificate	Importing, deleting, viewing, and downloading server certificates
Security rule base	Viewing default security rules in the IPS security library
Content identification	URL category and keyword configuration
User authentication	User management, user import, authentication server configuration, real-name user information synchronization, and authentication policy configuration
Policy	RG-WALL 1600-Z-S Series
Traffic learning	Traffic learning to record destination IP addresses and port numbers as well as abnormal traffic , exporting traffic learning logs
Network address translation (NAT)	NAT , configuring NAT policies , importing NAT policies in a batch , common NAT application-level gateway (ALG) services , server port mapping , viewing NAT address pool status
Security policy	Configuring security policies , customizing policies based on parameters including objects, contents, and zones , viewing the policy list , importing security policies in a batch
Policy simulation	Simulating policy execution in the simulation space to check whether uncertain security policies can achieve expected effects
Policy configuration wizard	Security policy configuration wizard for conducting port scan, performing configurations, testing configurations, and other steps to generate security policies
Policy optimization	Sorting out configured security policies and analyzing policies to identify redundant, expired, and conflicting policies
Policy lifecycle	Full lifecycle display of security policies, including detailed records of policy changes
Port scan	Port scan of configured IP ranges for all ports or selected ports , policy creation prompt for scan results
DoS/DDoS attack defense	Different DDoS attack defense policies in security defense
ARP attack defense	Preventing ARP attacks including ARP spoofing and ARP flooding in security defense
Local defense	Configuring local defense policies in security defense
Threat intelligence	Enabling or disabling threat intelligence , customizing threat intelligence , managing excluded threats
Blocklist and allowlist	Configuring global blocklists and allowlists
SSL proxy policy	Configuring SSL proxy policies , customizing policies based on parameters including objects, contents, and zones , viewing the policy list
SSL proxy template	Configuring SSL proxy templates , setting the template type to protecting client or server
Allowlist	Configuring domain name allowlists and application allowlists
Behavior analysis	Configuring analysis policies, templates, and allowlists
System	RG-WALL 1600-Z-S Series
Simple Network Management Protocol (SNMP)	Connecting to third-party platforms for management through SNMPv1/v2/v3
Patch installation	Downloading and installing patches for upgrade
Cloud management platform	Enabling or disabling unified management on the cloud management platform , log upload to the cloud
One-click collection	Collecting fault information with one click
Device health	Device health diagnosis
Service diagnosis	Service continuity diagnosis
System upgrade	System upgrade and rollback
Database backup	System database backup and restoration
Factory settings restoration	Restoring factory settings on the web UI
