Long Description
The specifications displayed below are for the entire series of products and may not apply to this product or model, please refer to the above description for the correct details of this model.
Overview:Toshibas 3.5-inch S300 Surveillance Hard Drive is designed and tested for 24/7 reliable surveillance, built for speed, capacity, and longer content retention. Capture and analyse every frame from up to 64 video cameras in high resolution with the S300. Space is important to continually capture a history of video evidence over a period of time. With up to 10 TB you get the capacity to record and play back the events in real-time in high resolution and with object identification and face recognition.
Use for:- Surveillance Digital Video Recorders (sDVR)
- Surveillance Network Video Recorders (sNVR)
- Hybrid sDVR (analog and IP)
- RAID Storage Arrays for Surveillance
Features:Built to performWith up to 10 TB of storage capacity and support for up to 64 video cameras, the S300 ensures mission-critical surveillance continually records. Real-time drive performance allows higher-resolution video recording and streaming and longer content retention.
Capture every frame, analyse every detail When analyzing security footage, you can't risk any frame drops. That's why your storage has to provide ultimate performance to detect rapid movements, record the smallest details, and perform face recognition. The S300 has been designed to meet your specialist demands and is built for 24/7 reliability and high-performance to help you never miss a thing.

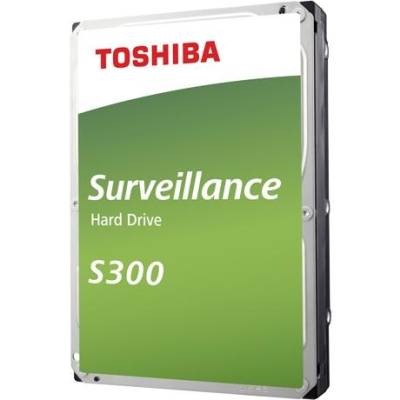

S300Surveillance Hard Drive
Designed and tested for compatibility The S300 has been designed and tested to support up to 64 high resolution cameras, allowing flexible scalability for your security camera systems. Compatible with DVR, NVR, video servers and video management systems for around-the-clock security, the surveillance never sleeps - so that you can.
Industry-leading performance A 256 MB buffer and high transfer rates meet the demands of surveillance data from higher-resolution camera streams. Improved real-time drive performance is achieved through Toshiba's Dynamic Cache Technology optimizing read and write cycle cache allocation through an on-board cache algorithm and buffer management.
Integrated RV sensors Regular hard disk drives without RV sensors can affect the performance of a multi-bay system by generating 'knock-on' vibration. The S300 ensures high reliability by minimising vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration - eliminating the possibility of 'knock-on' vibration in multi-bay surveillance systems.
High endurance, high reliability The high-endurance, high-performance components of the S300 withstand harsh environments for superior reliability. High-temperature environments trigger optimized seek speed to support lower power consumption while automatically reducing noise and vibration emissions. Up to one million hour MTTF (Mean time to failure) and 180 TB per year workload rating provide peace of mind when operating security camera systems.
Built to deliver, designed to last Toshiba is renowned the world over for 50 years of leading innovation - and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshibas wealth of experience in hard drives is at work in your storage system. A three year extended Warranty is also included with the S300 for the ultimate peace of mind.
Specifications:
| © 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | HDKPB04Z0A01S |
| Basic Specifications |
| Form factor | 3.5-inch |
| Interface | 6.0 Gbit/s |
| Number of cameras supported | 32 |
| Drive bays supported | 1 to 8 |
| Rotational Vibration (RV) Sensors | Yes |
| Advanced Format (AF) | Yes |
| RoHS compatible | Yes |
| Halogen Free | Yes |
| Shock Sensor | Yes |
| Performance |
| Rotational speed | 5,400 rpm |
| Max. data transfer speed (sustained) | 157 MB/s Typ. (4 TB CMR) |
| 184MB/s Typ. (2TB, 4 TB SMR) |
| Buffer size | 128 MB ( 2 TB, 4 TB) |
| Average latency | 5,56 ms (2 TB, 4 TB) |
| Native Command Queing (NCQ) | supported |
| Reliability |
| Workloads | 110 TB/year (4 TB) 180 TB/year (2 TB, 4 TB) |
| MTTF | 1,000,000 hours |
| Unrecoverable error rate | 1 per 10E14 bits read |
| 24/7 operation | Yes |
| Load / Unload Cycle | 600000 |
| Power Management |
| Consumption (operating) | 7.5 W typ. (4 TB) |
| 4.11 W typ. (4 TB) |
| 4.01 W typ. (2 TB) |
| Consumption - Active Idle | 4.00 W typ. (4 TB) |
| 2.36 W typ. (4 TB) |
| 2.08 W typ. (2 TB) |
| Environmental |
| Temperature (operating / non-operating) | 0 to 70° C / -40 to 70°C |
| Vibration (operating) | 7.35 m/s2 {0.75 G} (5 to 300 Hz) 2.45 m/s2 {0.25 G} (300 to 500 Hz) (4 TB) |
| 4.90 m/s2 {0.50 G} (5 to 350 Hz) 2.45 m/s2 {0.25 G} (350 to 500 Hz) (4 TB) |
| 4.90 m/s2 {0.50 G} (5 to 350 Hz) 2.45 m/s2 {0.25 G} (350 to 500 Hz) (2 TB) |
| Vibration (non-operating) | 29.4 m/s2 {3.0 G} (5 to 500 Hz) |
| Shock (operating) | 686 m/s2 70 G / 2 ms duration |
| Shock (non-operating) | 2940 m/s2 300 G / 2 ms duration (4 TB) |
| 3430 m/s2 350 G / 2 ms duration (4 TB) |
| 3430 m/s2 350 G / 2 ms duration (2 TB) |
| Acoustics (idle mode) | 26 dB typ. (4 TB) |
| 22 dB typ. (4 TB) |
| 21 dB typ. (2 TB) |
| Physical |
| Dimensions | 147 (L) x 101.85 (W) x 26.1 (H) mm |
| Weight (approx.) | 720 g max. (4 TB) |
| 650 g max. (4 TB) |
| 440 g max. (2 TB) |
| Box Content |
| Box Content | 3.5-inch internal hard drive - S300 Surveillance Hard Drive |
