Specifications:
| © 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |

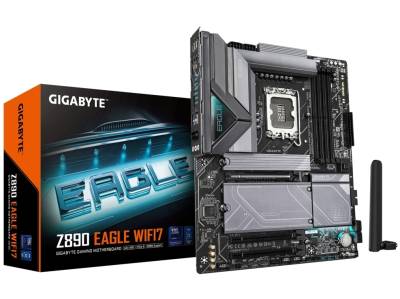

| Product Code | GA-Z890-EAGLE |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT / s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) | |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. | |
| Expansion Slots | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) | |
| Storage Interface | CPU: |
| - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| - 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| - 1 x USB4 USB Type-C port on the back panel | |
| Chipset: | |
| - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header | |
| - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+2 USB 2.0 Hubs: | |
| - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x power button | |
| 1 x Q-Flash Plus button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 1 x USB4 USB Type-C port (DisplayPort (Note)) |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x DisplayPort (Note) | |
| 2 x antenna connectors (2T2R) | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| (Note) Actual support may vary by CPU. | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor , 30.5cm x 24.4cm |
