DS-K1F600U-D6E-F specification sheet

Short Description

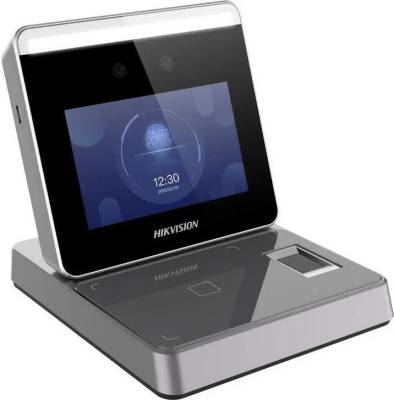

Hikvision DS-K1F600U-D6E-F Enrollment Stataion, Supports enrolling face picture, fingerprint

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Features:

• 3.97-inch LCD touch screen for face enrollment, parameters configuration, live view, etc.
• 2 MP wide-angle dual-lens
• Face anti-spoofing, Face enrollment distance: 0.3 m to 1.5 m
• Deep learning algorithm
• 2,000 user capacity, 2,000 face capacity, 20,000 card capacity, and 20,000 fingerprint capacity
• Enrolls data via the device and transmits the data from the device to the platform via TCP/IP/Type C USB interface; Enrolls data remotely via the client software
• Stand-alone operation: Manage, search and set device data after logging in the device locally

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-K1F600U-D6E-F
System
Operating system	Linux
Display
Screen size	3.97-inch
Operation method	Touch
Type	Capacitive
Resolution	800 x 480
Video
Lens	2
Resolution	2 MP
WDR	Support
Network
Wired network	TCP/IP
Wi-Fi	Support, 2.4 G, 802.11b/g/n
Interface
USB	Supports 1 USB interface and 1 Type C USB interface
	(Type C USB interface is used for communicating with the platform.)
Capacity
User capacity	2000
Face capacity	2000
Fingerprint capacity	20,000 (10 fingerprints per person)
Card capacity	20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules)
Event capacity	2000 offline enrollment records
Authentication
Face recognition distance	0.3 m to 1.5 m
Card type	EM card;M1 card;DESfire card;Felica card
Card reading frequency	13.56MHz, 125KHz
Card reading distance	0 to 5 cm
General
Power supply	12 VDC, 15 W, Round
Working temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working humidity	10% to 90%
Dimensions	121.6 mm x 137.9 mm x 125 mm (4.8" x 5.4" x 4.9")
Installation	Base mounting
Application environment	Indoor
Function
Face anti-spoofing	Support
Audio prompt	Support
Time synchronization	Support
