CSV-1585-CLUB3D specification sheet

Short Description

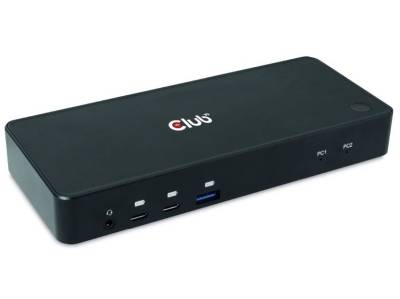

Club 3D CSV-1585 DisplayPort / HDMI KVM Switch / Dock 4K 60Hz for USB Type-C inputs, KVM for USB Type-C inputs, Docking Station with MST functionality, 1x HDMI Female, 1x DisplayPort Female, 1x USB Type-C PD3.0 (100Watt) for charging PC1, 2x USB Type-C Gen1 Data (5 Gbps), 2x USB Type-A Gen1 Data (5 Gbps), 1x USB Type-A Gen1 Data (5 Gbps) BC1.2, 1x headset 3.5mm Stereo Port, Remote switching, Ethernet Gigabit RJ-45

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs
The Club 3D CSV-1585 is a MST dual(HDMI+DP) display dock with KVM functionality. Two USB Type-C input for connecting two different hosts to improve the productivity between the two hosts quickly, just one click on the top button or by clicking the connected cable remote button. 3xUSB Type-A+3xUSB Type-C provide enough connection for external devices with up to 5Gbps data transfer. 120Watt DC power supply provides 65Watt Power Delivery(PD) to charge your USB Type-C laptop or host devices. Compatible with any USB Type-C port DP Alt Mode enabled devices, like Laptop, desktop PC, tablet, Phone, etc. Support charging with PC1 and PC2 port, press the POWER SWITCH key to switch input power. Using 20V/6A 120W DC power adapter to supply power for docking station, among 65W power charging for PC2 host at the same time. Supply External power for PC1 through USB Type-C1 port, the charging power depends on the PD adapter. With Kensington lock. Plug and play.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CSV-1585-CLUB3D
Product Name	DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs
Product Series	Universal Docking
Product Code	CSV-1585
EAN code	8719214472870
UPC code	841615103140
Features	Dual USB Type-C Inputs
	Dual DisplayPort / HDMI Output up to 4K60Hz
	Compatible with DP Alt Mode
	Support KVM function
	Dual PD connections Thru PS and USB Type-C connector
	Support for switching LED indications
Applications	Docking station with MST functionality(On MAC systems Only SST(Mirror Screen))
	KVM for USB Type-C inputs
OS Support	Windows 10 or upwards, Mac 13.5.2
In the box	1X CSV-1585 DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs
	2x USB Type-C Cable length approx.: 1m / 3.28 ft
	1x Remote Cable length approx.: 1m / 3.28 ft
	Power Supply 100-240VAC/ 20V/6A DC 120Watt(Specify Power Plug)
Available Interfaces
Input	PC 1 USB Type-C
	PC 2 USB Type-C
	DC 20V/120Watt from Power Supply Unit
Output	1x HDMI Female
	1x DisplayPort Female
	1x USB Type-C PD3.0(100Watt) for charging PC1
	2x USB Type-C Gen1 Data(5 Gbps)
	2x USB Type-A Gen1 Data(5 Gbps)
	1x USB Type-A Gen1 Data(5 Gbps) BC1.2
	1x Headset 3.5mm Stereo port
	Remote Switching
	Ethernet Gigabit RJ-45
Other info	Box size: 21 x 25 x 5 cm / 8.27 x 9.84 x 1.97"
	Device size: 18.5 x 7.9 x 2.8cm / 7.28 x 3.11 x 1.1"
	2x USB Type-C Cable length approx.: 1m / 3.28 ft
	1x Remote Cable length approx.: 1m / 3.28 ft
	USB Type-C Male Connector dimensions: 3.62 x 1.2 x 0.63 cm / 1.43 x 0.47 x 0.25"
	Device Weight: 248 gr / 8.75 oz
	2x USB Cable Weight: 36 gr / 1.27 oz
	1x Remote Cable Weight approx.: 24 gr / 0.85 oz
	PS Weight approx.: 592 gr / 20.88 oz (Depending on Power Plug)
	Box Weight: 142 gr / 5.01 oz
	Total Weight Approx.: 1078 gr / 38.03 oz
	Meets ROHS, FCC, and CE EMI requirements
