CB-CNW-V2000 specification sheet

Short Description

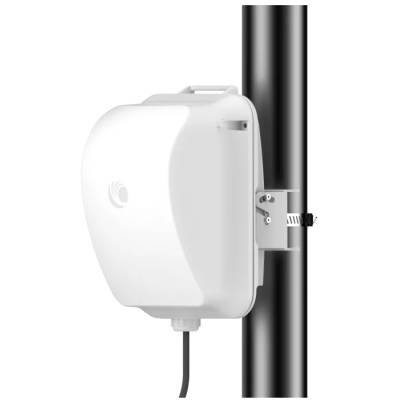

Cambium 60GHz cnWave V2000 Client Node excluding PoE injector, 1.9 Gbps (In each direction), 802.11ay Terragraph, 34.5 dBi, TDMA, Integrated antenna, 1x 2.5 GbE PoE Input, 1x 2.5 GbE PoE 802.3at Output

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

Cambium 60GHz cnWave V2000 Client Node excl. PoE injector
The V2000 is the latest addition to the Cambium cnWave range. It is a CPE which fits between the capabilities for the V1000 and V3000 . Its max range is 320m in a PtMP configuration and 500m in a PTP configuration. Capable of GB throughput, it is ideal to connect places that fibre cannot reach. Pair it with the V5000 distribution node for a PtMP deployment.

Features:

Designed for high-speed and high-density deployments
Cambium Networks' cnWave 60 GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.
The V2000 features a 2.5 GbE PoE input port as well as a 2.5 GbE PoE 802.3at output port for powering Wi-Fi access points or video surveillance cameras. This makes the V2000 especially well-suited to backhaul Cambium's XV2 series of outdoor Wi-Fi AP's.

Multi-Gigabit Fixed Wireless
Proven in municipal deployments for high-speed connectivity for Wi-Fi backhaul and small cell infrastructure on the network edge.

Cloud and On-Premise Management
cnWave 60 GHz operates with Cambium Networks' cnMaestro management system. cnMaestro is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CB-CNW-V2000
Spectrum
Frequency Range	57 to 66 GHz in a single SKU
Channel Width	2.16 GHz, 4.32 GHz
Channel Bonding	Up to 2 adjacent channels
Mode of Operation	PMP Client or PTP
Interface
Channel Access	TDMA/TDD
Ethernet Interface	1 x 2.5 GbE PoE Input
	1 x 2.5 GbE PoE 802.3at Output
Networking
Protocols Supported	IPv4, IPv6, Layer2 Bridge, Layer3 IPv6 Routing, Open/R mesh
Network Management	cnMaestro, HTTP, HTTPS, SNMP v2c & v3
MTU	2,000 bytes
VLAN	802.1ad (QinQ), 802.1Q with 802.1p priority
Security
Encryption	128-bit AES
Firmware Security	Signed Firmware Images
Performance
Modulation & Coding Schemes	MCS-0 (BPSK) to MCS-12 (16-QAM-3/4)
Latency	< 1 ms
Maximum EIRP	49 dBm
Antenna
Gain	34.5 dBi
Type	Integrated
Beamforming Scan Range	+/- 10º azimuth, +/- 4.0º elevation
Powering
Type	802.3at
Power Consumption	18W (48W when using PoE output port)
Physical
Environmental	IP66/67
Temperature	-40ºC to 60ºC (-40ºF to 140ºF)
Mean Time Between Failure	> 40 years
Weight	1.9 kg (4.2 lbs.) with bracket
Dimensions HxWxD	249 x 166 x 220 mm
	(9.8 x 6.5 x 8.7 in)
Wind Survival	200 km/h (124 mph)
