TL-WA801N specification sheet

Short Description

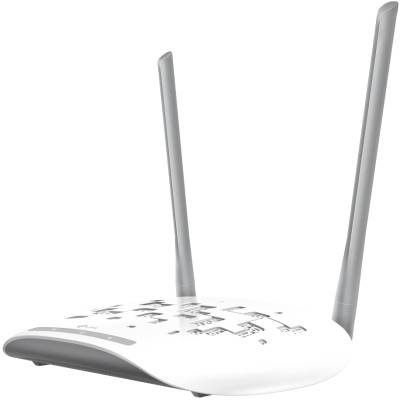

TP-Link TL-WA801N 300 Mbps Wireless N Access Point, 1x 10/100 Ethernet Port RJ45, 2 fixed Omni-Directional antennas, 300 Mbps at 2.4GHz, Wireless modes - AP mode / Multi-SSID mode / Client mode / Range Extender mode, Up to 30 meters Passive PoE is supported

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

TL-WA801N
300Mbps Wireless N Access Point

• 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
• Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
• Protects your home network with WPA2 encryption and makes quick connection with the push of a button
• Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

Features:

What This Product Does
The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Wireless N - Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes - Easy to Build WLAN
Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported - More Flexible Deployment
The TL-WA801N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.
How can I find the hardware version?

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TL-WA801N
HARDWARE FEATURES
Interface	1 x 10/100 M Ethernet Port(RJ45)
	Support Passive PoE
Button	Power On/O&#-1280; Button, WPS Button, Reset Button
External Power Supply	9VDC / 0.6A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	7.1 x 5.1 x 1.4 in (181.6 x 129.5 x 36.2 mm)
Antenna Type	2 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency	2.4 GHz
Signal Rate	300 Mbps at 2.4 GHz
Reception Sensitivity	11g 6Mbps: -90dBm
	11g 54Mbps: -77dBm
	11n HT20 MC7: -73dBm
	11n HT40 MC7: -70dBm
Transmit Power	CE: <15dBm, FCC: <20dBm
Wireless Modes	AP Mode
	Multi-SSID Mode
	Client Mode
	Range Extender Mode
Wireless Functions	Enable/Disable Wireless Radio, WMM, Short GI, AP
	Isolation, Wireless Statistics, Throughput Monitor
Wireless Security	WEP, WPA/WPA2, WPA/WPA2-PSK encryptions
Quality of Service	WMM
Management	SNMP
Advanced Functions	Up to 30 meters Passive PoE is supported
OTHERS
Certification	CE, FCC, RoHS
Package Contents	Wireless Access Point TL-WA801N
	Power Adapter
	Passive PoE Power Injector
	RJ45 Ethernet Cable
	Quick Installation Guide
System Requirements	Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10, MAC OS
	NetWare, UNIX or Linux
	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
	Java-enabled browser
	Cable or DSL Modem
	Subscription with an Internet Service Provider (for Internet access)
Environment	Operating Temperature: 0°C~40°C (32°F ~104°F)
	Storage Temperature: -40°C~70°C (-40°F ~158°F)
	Operating Humidity: 10%~90% RH
	Storage Humidity: 5%~90% RH
