CAM-C340S-4MM specification sheet

Short Description

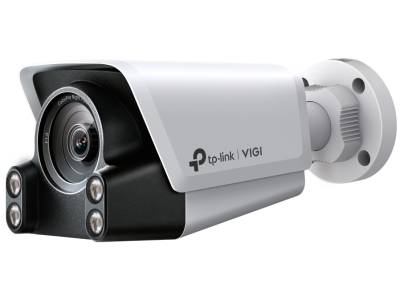

TP-Link C340S VIGI 4MP Outdoor ColorPro Night Vision Bullet Network camera with 4mm Lens, 1/1.8" Progressive Scan CMOS image Sensor, 4 White LED with 30m illumination distance, No IR LED, 3D DNR Digital Noise Reduction, IP67 weatherproof rating, 2688x1520 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, Image enhancement - BLC / 3D DNR / HLC, 120 dB wide Dynamic range, 1 region ROI, Two-Way audio, 3 main streams & 3 Sub-Streams, Motion Detection, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port Network Interface, Built-In Microphone, Built-In Speaker, Built-In Memory card slot, Support MicroSD card up to 256 GB

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

VIGI C340S
VIGI 4MP Outdoor ColorPro Night Vision Bullet Network Camera

• Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
• Face Recognition: Efficiently enhances access management and attendance control while better protecting privacy.
• People & Vehicle Analytics: Quickly find peopleand vehicles of interest using a series of attributes, allowing you to improve search efficiency.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• 120dB WDR Technology: Enable crystal-clear images in high contrast scenes.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio : With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+ : Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP67 Waterproof: Reliable IP67 for stable outdoor performance.
• Flexible Management and Storage : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Features:

See VividColors, Even in Darkness.
4MP Outdoor ColorPro Night Vision Bullet Network Camera

• High Definition
• True WDR
• Face Recognition
• People & Vehicle Analytics
• Human & Vehicle Classification
• Smart Detection
• Two-Way Audio
• Active Defense
• Smart Video Coding
• IP67
• Remote Monitoring
• Onboard Storage

VIGI ColorPro Night Vision
VIGI's industry-leading ColorPro Night Vision technology enables its cameras to pierce the night and see everything in fine detail. By adopting this best-in-class technology, VIGI C340S can provide 4MP high resolution and capture more vivid full-color images in extreme low-light conditions.

Better than the Naked Eye
Featuring high low-light sensitivity, VIGI's ColorPro Night Vision produces unparalleled colors along with amazingly crisp images in ultra-low light conditions, which can't be achieved with natural eyesight.*

Beyond IR, Beyond Full-Color
Images captured by IR cameras or traditional full-color cameras will suffer from digital noise and the loss of detail. VIGI's ColorPro Night Vision cameras reveal excellent image details even in extreme darkness.*

• VIGI ColorPro Night Vision
• Traditional Full-Color Night Vision
• IR Night Vision

Less Light Pollution
Bright illumination is required by conventional full-color cameras to capture images at pitch-dark hours. But VIGI's ColorPro Night Vision cameras delivers true color and bright imaging even in extremely low light with no spotlights needed, greatly reducing environmental light pollution.

Core Technology
VIGI's powerful ColorPro Night Vision ability to capture vivid images in extreme low-light conditions emerges from four breakthroughs:

F1.0 Large Aperture

• Collects 4x more light to support colorful imaging at night

1/1.8" Highly Sensitive Sensor

• Increased photosensitive surface by 2.1x to make the best of available light

Uniquely Designed White Lights

• Light is more concentrated for the FOV required by the lens
• LED fill lights emit more uniform and softer lighting

Embedded ISP Module

• Smart image-processing algorithms automatically enhance image quality
• 120 dB WDR ensures crystal-clear images in high contrast scenes

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

• Human & Vehicle Classification
• Only Human Classification On
• Only Vehicle Classification On

Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

• IntrusionDetection
• Line-CrossingDetection
• Region EnteringDetection
• Region ExitingDetection
• Abandoned ObjectDetection
• Object RemovalDetection
• LoiteringDetection

Set customized activity zones around key areas for more focused monitoring.

Face Recognition
VIGI's advanced built-in face recognition algorithm enables cameras to intelligently capture faces, extract facial features, and form unique facial data. By comparing the facial data with a face library, quickly match a human face, efficiently reducing the risk of unauthorized access.

People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

• People Analytics Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.
• Vehicle Analytics Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.
• Active Defense Warn potential intruders instantly with sound and light when abnormal events are detected.
• Two-Way Audio With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• PoE & IP67 Outdoor PoE connection makes your wiring remarkably easy. Reliable IP67 enables stable outdoor performance.
• Smart Video Coding by H.265+ Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.

Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build - whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CAM-C340S-4MM
CAMERA
Image Sensor	1/1.8" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	4 mm: F1.0
	6 mm: F1.0
Lens	Fixed focal lens (4 mm / 6 mm)
Lens Mount	M12
Minimum Illumination	Color: 0.0005 Lux, 0 Lux with white light
Day/Night Mechanism	NA
Day/Night Switch	Day/Night/Auto/Schedule-Switch
IR LED	N/A
White LED	Quantity: 4
Digital Noise Reduction	3D DNR
WDR	120dB
Weatherproof Rating	IP67
Illumination Distance	30 m
Viewing Angle	4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
	6mm: Horizontal FOV: 57.1°, vertical FOV: 30.2°, Diagonal FOV: 67.2°
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.0
FOV	4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
Lens Mount	M16*P 0.5
DORI Distance	4 mm:
	Detect: 70 m (231 ft)
	Observe: 29 m (96 ft)
	Recognize: 14 m (46 ft)
	Identify: 7 m (23 ft)
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: -90° to 90°
	Tilt: -90° to 90°
ILLUMINATOR
IR LED	N/A
White LED	Quantity: 4
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 x 1520
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	640x480, 352x288, 320x240
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
DEEP LEARNING FUNCTION
Multi-Target-Type Detection	Supports Simultaneous Detection and Capture of Human Body and Vehicle
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture	Support
Face Comparison	Support
Perimeter Protection	Motion, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering.
	Supports Alarm Triggering by Specified Target Types (Human and Vehicle)
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Button	Reset Button
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes, Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30-60 °C
Storage Temperature	-40-60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Dimensions( H X W X D )	99 x 102 x 236 mm
Materia	Front Cover: Mental
	Other: Plastic
Material	Front Cover: Metal
	Back Cover: Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Consumption	12V DC: Max 10.1W
	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
	PoE (802.3af/at, class 0)
Protection	IP67
Product Dimensions (L x W x H)	102 x 236 x 99 mm
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
VIDEO/IMAGE
Video Compression	Main stream: H.265+/H.265/H.264+//H.264
	Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream
	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream
	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 640x480, 352x288, 320x240
Video Streaming	Main Stream
	Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC, HLC, 3D DNR
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event	Intrusion Detection, Object Abandoned/Removal Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Line Crossing Detection, Human Detection, Vehicle Detection
Basic Event	Motion detection, Camera Tampering, Scene Change Detection, Exception(illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
