Overview:

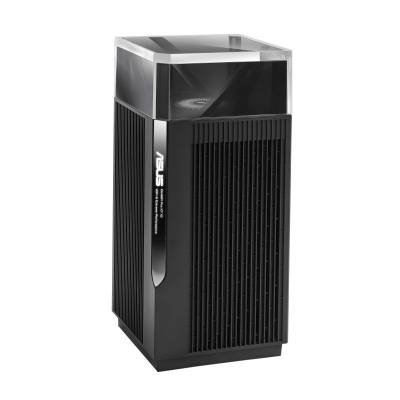

ZenWiFi Pro is the new paradigm for whole-home mesh WiFi, combining performance and beauty in a perfectly balanced package. It takes the productivity and entertainment capabilities of your whole-home network to the next level, with scalable capacity for the new generation of home networking ecosystems.
Features:
Massive Capacity, Lightning-Fast Speed
WiFi 6 gives ZenWiFi Pro XT12 up to 4X the capacity and 2X the speed of WiFi 5, thanks to advanced technologies like BSS Color, uplink and downlink OFDMA, and 160 MHz MU-MIMO. Network efficiency is improved too, so your devices get all the bandwidth they need. If you have lots of different networked devices, such as PCs, laptops, smartphones, NAS and smart home devices, ZenWiFi Pro XT12 is your ideal choice.
Expanded UNII-4 Spectrum
ASUS ZenWiFi Pro XT12 supports an expanded UNII-4 spectrum, which features a third and clean 160 MHz channel on the 5 GHz band. This increases mesh backhaul capacity to deliver reliable and high performance for your wireless devices.
More Streams, More Bandwidth
ZenWiFi Pro XT12 is a 12-stream device, with combined total data rates up to 11000 Mbps. This boosts its capacity for transmitting and receiving data to large numbers of devices simultaneously, reducing dead zones and giving ZenWiFi Pro XT12 the performance edge for the busiest home networks.
RangeBoost Plus
ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, and it improves coverage for all your WiFi devices including legacy devices. Using a next-gen flagship Broadcom WiFi 6 chipset and a 2.0GHz 64-bit quad-core CPU, RangeBoost Plus leverages multiple exclusive ASUS technologies to dramatically improve WiFi signal range and coverage by up to 38%
Easy Scalability for Flexible Networking
With ASUS AiMesh, it's easy to add extra nodes for improved coverage or new features - simply add any AiMesh-compatible router!
Dual 2.5G LAN and WAN Ports
ZenWiFi Pro XT12 has both a 2.5G LAN port and a 2.5G WAN port, so you can enjoy full 2.5 Gbps speeds all the way from a compatible ISP to your compatible wired devices.
Flexible Backhaul Choice
ZenWiFi Pro XT12 lets you allocate either the second 5 GHz band or wired Ethernet for the backhaul connection between nodes. Alternatively, you can choose automatic mode and let ZenWiFi Pro XT12 choose the best connection type based on your environment. The choice is always yours!
Engineered for Performance
ZenWiFi Pro XT12 is engineered to deliver maximum WiFi performance - with throughput improved by up to 18%*- from the latest Broadcom WiFi 6 chipset and CPU . The eight external antennas are carefully located and angled within the special transparent compartment on the top of the router, minimizing interference while maximizing signal coverage.
Commercial-Grade Security for Your Home
Home network security is crucial when you have multiple connected devices, especially if your network hosts devices without virus protection, such as IoT devices. ZenWiFi Pro XT12 includes lifetime free AiProtection Pro, including advanced Parental Controls, and also uses the latest WPA3 security protocol.
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via ZenWiFi Pro XT12 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi Pro XT12, you can take your home network with you wherever you go - and say goodbye to web-based third-party VPNs!
| © 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | XT12-PRO-1PK |
| Model | ASUS ZenWiFi Pro XT12 |
| Model Name | XT12(1-PK) |
| Network Standard | IEEE 802.11a |
| IEEE 802.11b | |
| IEEE 802.11g | |
| WiFi 4 (802.11n) | |
| WiFi 5 (802.11ac) | |
| WiFi 6 (802.11ax) | |
| IPv4 | |
| IPv6 | |
| Product Segment | AX11000 ultimate AX performance : 1148+4804+4804Mbps |
| WiFi Data Rate | 802.11a : up to 54 Mbps |
| 802.11b : up to 11 Mbps | |
| 802.11g : up to 54 Mbps | |
| WiFi 4 (802.11n) : up to 600 Mbps | |
| WiFi 5 (802.11ac) : up to 1000 Mbps | |
| WiFi 5 (802.11ac) : up to 4333 Mbps | |
| WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps | |
| WiFi 6 (802.11ax) (5GHz-1) : up to 4804 Mbps | |
| WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps | |
| Antenna | internal antenna x 10 |
| Transmit / Receive | 2.4GHz 4x4 |
| 5GHz-1 4x4 | |
| 5GHz-2 4x4 | |
| Processor | 2.0 GHz quad-core 64bits processor |
| Memory | 256 MB Flash |
| 1GB RAM | |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: standard-based and universal | |
| 1024-QAM high data rate | |
| 20/40/80/160 MHz bandwidth | |
| * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. | |
| Operating Frequency | 2.4G Hz, 5 GHz-1, 5 GHz-2 |
| Operating Mode | Wireless router mode |
| Repeater mode | |
| Access point mode | |
| Media bridge mode | |
| I/O Ports | RJ45 for 2.5G BaseT for WAN x 1, RJ45 for 2.5G BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 2 |
| Buttons | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 |
| Status x 1 | |
| Power Supply | AC Input : 110V~240V(50~60Hz) |
| DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current | |
| Package Content | ZenWiFi Pro XT12 |
| RJ-45 Cable | |
| Power Adapter | |
| Quick Start Guide | |
| Warranty Card | |
| Product Weight (g) | 1500 g |
| Product Dimensions | 115 x 115 x 241mm |
| 115 x 115 x 241 mm | |
| AiMesh | Primary AiMesh Router |
| AiMesh Node | |
| Parental Control | "Allow you to block access to unwanted websites and apps." |
| Router APP | APP: ASUS Router APP |
| Guest Network | Support Guest Network |
| Maximum Guest Network Rule : Max 9 rules | |
| Security | WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3-Personal, WPS support |
| WPS | |
| Let's Encrypt | |
| Firewall | |
| Maximum Firewall Keyword Filter : Max 64 rules | |
| Maximum Firewall Network Service Filter : Max 32 rules | |
| Maximum Firewall URL Filter : Max 64 rules | |
| AiProtection | AiProtection Pro |
| Malicious Site Blocking | |
| Two-Way IPS | |
| Infected Device Prevention and Blocking | |
| VPN | VPN Client L2TP |
| VPN Client Open VPN | |
| VPN Client PPTP | |
| VPN Server IPSec | |
| VPN Server Open VPN | |
| VPN Server PPTP | |
| Traffic Control | Adaptive QoS |
| Traffic Monitor | |
| Traffic Analyzer | |
| WAN | Dual WAN |
| WAN Aggregation | |
| DMZ | |
| DDNS | |
| LAN | IGMP Snooping |
| IPTV | |
| LAN Link Aggregation | |
| Wake on LAN (WOL) | |
| Wireless | UTF-8 SSID |
| WiFi MAC Address Filter | |
| Maximum MAC Filters : Max 64 rules | |
| Wireless Scheduler | |
| Airtime Fairness | |
| RADIUS Client | |
| Universal Beamforming | |
| Explicit Beamforming | |
| Administration | Diagnosis Tools |
| Feedback System | |
| System Log | |
