EB-805F specification sheet

Short Description

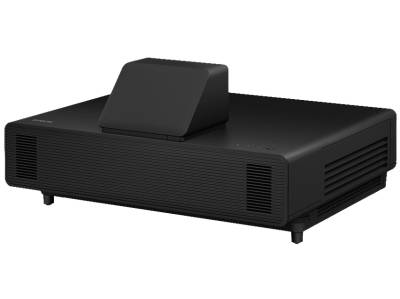

Epson EB-805F 5000 Lumen Full HD 1920x1080 3LCD Laser Projector, Ultra Short Throw, V11H923640 what's in the box - CD manual, cable cover, Lens cap, Power cable, Remote control including batteries, No bracket, 16:9 Aspect Ratio, 2500000:1 contrast ratio, Laser light source, Optical Lens, 65" - 130" screen size, 2x USB 2.0, RS-232C, Ethernet Interface, WiFi, 2x VGA in, VGA out, 3x HDMI in, HDMI out, Composite in, HDBaseT, 8 Watt, Loudspeaker

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

EB-805F
Digital signage solution

The EB-805F is a bright and scalable ultra-short-throw display solution that brings Epson innovation to signage applications.

This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

SKU: V11H923640

Features:

• Ultra-short-throw signage projector Compact, unobtrusive design.
• Up to 130-inch display Full HD resolution, 5,000 lumen brightness and 3LCD technology
• Easy installation 360 degree rotation with portrait projection support
• Flexible playback Play content directly from a USB stick

Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.

Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.

Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.

Specifications:

© 2023 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	EB-805F
Technology
Projection System	3LCD Technology
LCD Panel	0,62 inch with C2 Fine
Color Light Output	5.000 Lumen- 3.500 Lumen (economy) In accordance with IDMS15.4
White Light Output	5.000 Lumen - 3.500 Lumen (economy) In accordance with ISO 21118:2020
Resolution	1080p
Aspect Ratio	16:9
Contrast Ratio	Over 2.500.000 : 1
Light source	Laser
Laser Light source	20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction	Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing	10 Bits
2D Vertical Refresh Rate	192 Hz - 240 Hz
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	0,27 - 0,37:1
Zoom	Digital, Factor: 1 - 1,35
Lens	Optical
Screen Size	65 inches - 130 inches
Projection Distance Wide	0,4 m ( 65 inch screen
Projection Distance Tele	0,8 m ( 130 inch screen
Projection Lens F Number	1,5
Projection Lens Focal Length	3,9 mm
Projection Lens Focus	Manual
Offset	9 : 1
Connectivity
USB Display Function	2 in 1: Image/ Sound
Interfaces	USB 2.0-A (2x), USB 2.0, Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in (3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Jack plug out, Jack plug in (3x)
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington lock, Password lock, Padlock, Security cable hole, Password protection
Other features	Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Long light source life, Network administration, OSD copy function, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
Video Color Modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector control	via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption	293 Watt - On mode power consumption (Normal)
	366 Watt (Peak), 262 Watt (Eco), 0,5 Watt (Energy saving standby)
Heat Dissipation	1.244 BTU/hour (max)
Supply Voltage	AC 220 V - 240 V, 50 Hz - 60 Hz
Product dimensions	458 x 375 x 210 mm (Width x Depth x Height)
Product weight	9,4 kg
Noise Level	Normal: 36 dB (A) - Economy: 27 dB (A)
Supported Temperature	Storage -10° C - 60° C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
	If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
	If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Options	Wireless LAN unit
Loudspeaker	8 Watt, Stereo: Stereo
What's in the box	CD Manual, Cable cover, Lens cap, Power cable, Remote control incl. batteries, Warranty document
Room Type / Application	Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop, Wall Mounted
Colour	Black
