Long Description
The specifications displayed below are for the entire series of products and may not apply to this product or model, please refer to the above description for the correct details of this model.

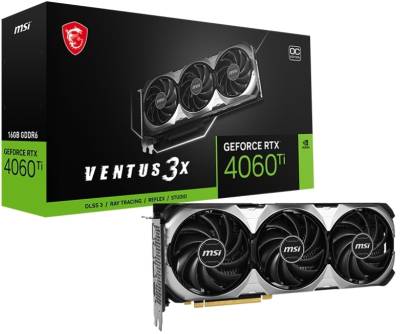

Overview:GeForce RTX 4060 Ti VENTUS 3X 16G OC - WITH DLSS 3Game, stream, create. The GeForce RTX 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed- 2610 MHz / 18 Gbps
- 16GB GDDR6
- DisplayPort x 3 (v1.4a)HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Triple Fan Thermal Design- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Dont sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.
Metal Backplate- Thermal pads under the sturdy flow-through metal backplate helps with cooling.
MSI Center- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Features:Powered by GeForce RTX 40 Series and DLSS 3- New Streaming Multiprocessors Up to 2x performance and power efficiency
- Fourth-Gen Tensor Cores Up to 4x performance with DLSS 3 vs. brute-force rendering
- Third-Gen RT Cores Up to 2x ray tracing performance
AI-Enhanced Voice and VideoRTX Video Super Resolution and NVIDIA Broadcast
Fast-Track Your CreativityNVIDIA Studio
Performance and ReliabilityGame Ready and Studio Drivers
TORX FAN 4.0TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
AIRFLOW CONTROLStay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where its needed for maximum cooling.
COPPER BASEPLATEHeat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
CORE PIPECore Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
DrMosDrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
FuseAdditional fuses built into the custom PCB provide additional safeguards against electrical damage.
BRINGING IT ALL TOGETHERMSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
Get Ready to GameCreate game profiles with personalized graphics card settings including performance, True Color, and more.
USER SCENERIOAdjust the system performance and fan speed for different usage scenarios.
RECOMMENDED PACKAGESAfter you download MSI Center, you will be presented with a few categories to choose such as gamers, creators, work, etc. Each category contains a set of features recommended MSI for you to install.
PRECISION CONTROLS, UNLIMITED POWERMSI Afterburner is the most recognized and widely used graphics card overclocking software in the world. Take full control of the graphics card while monitoring key system metrics in real-time. Its free to use and compatible with most other vendor graphics cards.
OC ScannerOC Scanner is an automated function that will find the highest stable overclock settings for your graphics card. Giving you a free performance boost for a smooth in-game experience thanks to higher FPS.
NVIDIA Reflex - Victory Measured in Milliseconds.NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Ray Tracing - Hyperrealistic. Hyperfast.The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3 - Max FPS. Max Quality. Powered by AI.DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
Victory Measured in Milliseconds.NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Specifications:
| © 2023 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | RTX 4060 TI VENTUS 3X OC |
| MODEL NAME | GeForce RTX 4060 Ti VENTUS 3X 16G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA GeForce RTX 4060 Ti |
| INTERFACE | PCI Express Gen 4 x16 (uses x8) |
| CORE CLOCKS | Extreme Performance: 2625 MHz (MSI Center) |
| Boost: 2610 MHz |
| CUDA CORES | 4352 Units |
| MEMORY SPEED | 18 Gbps |
| MEMORY | 16GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 165 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 308 x 120 x 42 mm |
| WEIGHT (CARD / PACKAGE) | 757 g / 1109 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
