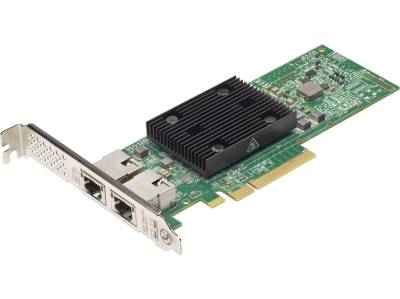

Lenovo ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter
Short Description
Lenovo 7ZT7A00496 ThinkSystem Broadcom 57416 10GBASE-T 2-port PCI-e Ethernet Adapter, PCI Express 3.0 x8 Host Interface
© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.
Long Description
The specifications displayed below are for the entire series of products and may not apply to this product or model, please refer to the above description for the correct details of this model.
Overview:The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.
Features:- Dual-channel 10 Gbps Ethernet controller
- 10GBASE-T IEEE 802.3an support
- 1000BASE-T IEEE 802.3ab support
- Based on the Broadcom BCM957416A4160C adapter and BCM57416 controller
- Supports IPv4 and IPv6
- Broadcom TruFlow flow processing engine
- PCI Express 3.0 x8 host interface
- Form factor:
- ML2 form factor (7ZT7A00497)
- PCIe low-profile form factor (7ZT7A00496)
Virtualization features- SR-IOV support with up to 128 VFs
- VXLAN, NVGRE, Geneve, GRE encapsulation and decapsulation
- vSwitch acceleration
- Multiqueue, NetQueue, and VMQ
- Tunnel-aware stateless offloads
- Message Signal Interrupts (MSI-X) support
Ethernet and NIC - IPv4 and IPv6 offloads
- TCP, UDP, and IP checksum offloads
- Large Send Offload (LSO)
- Large Receive Offload (LRO)
- TCP Segmentation Offload (TSO)
- Receive-side Scaling (RSS)
- Transmit-side Scaling (TSS)
- VLAN insertion/removal
- Interrupt coalescing
- Jumbo frames up to 9 KB
- Network boot-PXE, UEFI
- iSCSI boot
- Data Plan Development Kit (DPDK) support
Remote Direct Memory Access (RDMA):- Supports RDMA over converged Ethernet (RoCE) specifications
Data Center Bridging / Converged Enhanced Ethernet (DCB/CEE):- Hardware Offloads of Ethernet TCP/IP
- 802.1Qbb Priority Flow Control (PFC)
- 802.1 Qaz Enhanced Transmission Selection (ETS)
- 802.1 Qaz Data Center Bridging Exchange (DCBX)
Management:- SMBus 2.0
- MCTP over SMBus
- NC-SI support (ML2 adapter only)
