Overview:

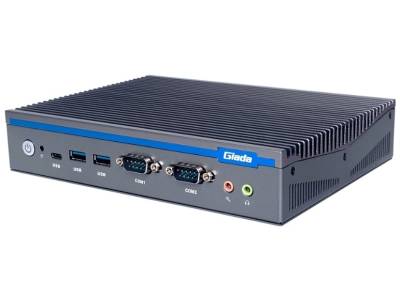

GIADA DF612 I3-1215U 2XDDR4 M.2 2XHDMI
The Giada DF612 Intel Core i3 is a high-end digital signage player that is ideal for work in hospitality, retail, commercial, service, and advertising. Its small and powerful design gives businesses the performance and efficiency of the IntelCoreTM i3-1215U CPU, as well as two HDMI connectors that enable up to 4K resolution and one DisplayPort connection that supports up to 8K resolution. It is incredibly customizable because of its HDMI, USB ports, gigabit Ethernet, WiFi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards. Because of its VESA mount flexibility, it may also be mounted in a variety of ways and simply hidden behind a monitor or large format panel.
Features:
WHATS IN THE BOX:
Specifications:
| © 2023 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | DF612-1215U40N0G-GIA |
| Processor | |
| CPU | Intel Core i3-1215U processor |
| Frequency | 3.30 GHz (Up to 4.40 GHz ) |
| Cores | 6 |
| BIOS | AMI EFI 64 Mbit |
| Memory | |
| Type | DDR4-3200MHz |
| Socket | 2 x SO-DIMM |
| Max Size | 64GB |
| Graphics | |
| GPU | Intel UHD Graphics |
| Graphic Engine | DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC |
| HDMI | 2 x HDMI (Max.4096 x 2304 @60 Hz) |
| DisplayPort | 1 x DP (Max.7680 x 4320 @60 Hz) |
| Network | |
| Controller | 1 x Intel i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet |
| Interface | 2 x RJ45 |
| Mobile Network | 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot |
| Wi-Fi/BT | 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi) |
| I/O | |
| USB | 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 |
| USB Type-C | 1 x USB Type-C3.2 Gen2 (10 Gbps) |
| Serial Port | 1 x RS232, 1 x RS232/422/485 |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT |
| Button | 1 x Power on, 1 x CLR-CMOS |
| Antenna | 2 x Connector for Wi-Fi/BT, 2 x Connector for 3G/4G (Reserved) |
| Storage | |
| M.2 | 1 x M-Key M.2 (2242/2280) for PCIe SSD |
| JAHC Tech | |
| WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start |
| Operation System | |
| Windows | Windows 11 (64bit) |
| Linux | Linux Ubuntu (64bit) |
| Power | |
| Power Type | DC-IN |
| Input Voltage | 12V/19V |
| Environment | |
| Operating Temperature | 0°C ~ 40°C ( 32 °F ~ 104 °F ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@40°C (non-condensing) |
| Certification | CE, FCC Class B, CCC |
| Mounting | Desk/Wall Mounting and VESA Mounting Kit (JZ183) |
| Construction | Metal |
| Colour | Black |
| Dimensions | 20 x 15 x 4 cm |
