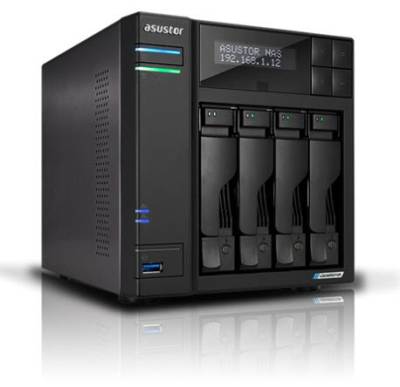

AS6704T specification sheet

Overview:

Enthusiast-grade NAS with two, four or six bays. The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance. The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.

Features:

• Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for 10GbE NICs or M.2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports – 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN

CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.

Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

Specifications:

© 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AS6704T
CPU	CPU Model: Intel Celeron N5105
	CPU Architecture: x64 64-bit
	CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory	Memory: 4GB SO-DIMM DDR4
	Memory Module Pre-installed: 4GB (1x 4GB)
	Total Memory Slots: 2
	Memory Expandable up to: 16GB (2x 8GB)
	Flash Memory: 8GB eMMC
Storage	Drive Bays 4
	M.2 Drive Slots 4
	Compatible Drive Type
	3.5" SATA HDD
	2.5" SATA HDD
	2.5" SATA SSD
	M.2 2280 NVMe
	Maximum Drive Bays with Expansion Unit: 12
External Ports	Expansion: 2x USB 3.2 Gen 2x1
	Network: 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	PCIe Expansion Slots: 1x for optional expansion 10 GbE card
	HDMI Output: 1x HDMI 2.0b
Others	System Fan: 1x 120mm
	LCD Panel: Yes
	Infrared Receiver: Yes
	Power Supply Unit / Adapter: 90W x1
	Input Power Voltage: 100V to 240V AC
