Overview:

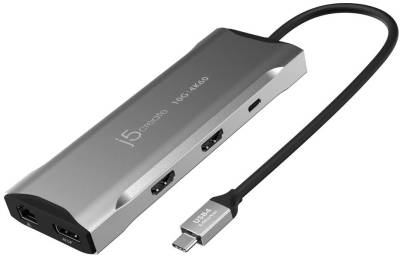

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging. This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Features:
System Requirements:
DisplayPort™ 1.4 devices are listed as follows:
Specifications:
| © 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | DS-JCD397 |
| Hardware | |
| Host Connector | 1 - USB-C Male |
| Video Output | 2 - HDMI Female |
| 1 - DisplayPort Female | |
| Power Source | Bus-powered or self-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports | 1 - USB-C 10Gbps |
| 1 - USB-C 5Gbps with Power Delivery 3.0 | |
| 2 - USB Type-A 10Gbps | |
| 1 - USB-C Power Delivery 3.0 | |
| 2 - 4K HDMI | |
| 1 - DisplayPort | |
| 1 - SD & microSD 4.0 memory card reader/writer | |
| 1 - RJ45 Gigabit Ethernet | |
| Performance | |
| Maximum Display Resolution | 3840 x 2160 |
| Maximum Display Refresh Rate | Windows (MST) |
| 3840 x 2160 @ 60 Hz | |
| 2560 x 1440 @ 120 Hz | |
| 1920 x 1080 @ 144 Hz | |
| Maximum Data Transfer Rate | 10Gbps |
| Displays Supported | 3 |
| Compatible Networks | 10/100/1000 Mbps |
| Audio Channel | 2.1 via HDMI |
| Power | |
| Power Delivery | Up to 100W via USB-C |
| Power Consumption | ≤ 650 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Output Voltage | Up to 20V |
| Physical Specifications | |
| Color | Space Grey |
| Enclosure Type | Aluminum |
| Cable Length | 7.87 in. (20 cm) |
| Product Height | 5.8 in. (148 mm) |
| Product Width | 2.17 in. (55 mm) |
| Product Depth | 0.67 in. (17 mm) |
| Product Weight | 4.36 oz (123.5g) |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 30 to 116°F (-1 to 41°C) |
| Operating Humidity | < 85% non-condensing |
