Specifications:
| © 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |

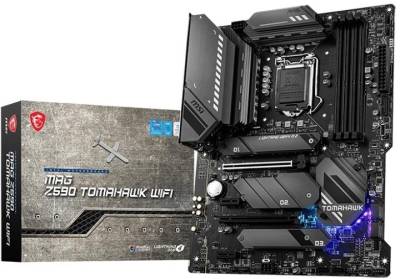

| Product Code | Z590 TOMAHAWK WIFI |
| Quick Spec | |
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel Z590 Chipset |
| DDR4 Memory | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 3 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel I225-V 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E AX210 |
| USB 3.2 ports (Front) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 1(Gen 2x2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Audio ports (Rear) | 5+ Optical S/PDIF (Realtek ALC4080 Codec) |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| CrossFire | Y |
| Operating System | Support for Windows 10 64-bit |
| Detailed Spec | |
| Processor | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors |
| Processor socket LGA1200 | |
| Chipset | Intel Z590 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB |
| Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) | |
| Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 5333 MHz | |
| 1DPC 2R Max speed up to 4700+ MHz | |
| 2DPC 1R Max speed up to 4400+ MHz | |
| 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Expansion Slot | 2x PCIe x16 slots |
| 1x PCIe 3.0 x16 slot (from CPU) | |
| Support up to PCIe 4.0 for 11th Gen Intel CPU | |
| Support up to PCIe 3.0 for 10th Gen Intel CPU | |
| PCI_E3 (From Z590 chipset) | |
| Support up to PCIe 3.0 x4 | |
| 2x PCIe 3.0 x1 slots (From Z590 chipset) | |
| Multi-GPU | Supports 2-Way AMD CrossFire Technology |
| Onboard Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz / |
| 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz / | |
| 1. Available only on processors featuring integrated graphics. | |
| 2. Graphics specifications may vary depending on the CPU installed. | |
| Storage | 6x SATA 6Gb/s ports (From Z590 chipset) |
| 3x M.2 slots (Key M) | |
| M2_1 slot (From CPU) | |
| Available only on 11th Gen Intel CPU | |
| Supports up to PCIe 4.0 x4 | |
| Supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_2 & M2_3 | |
| 2 slot (From Z590 chipset) | |
| Supports up to PCIe 3.0 x4 | |
| Supports SATA up to 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| Intel Optane Memory Ready | |
| Supports Intel Smart Response Technology for Intel Core processors | |
| 1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| 2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. | |
| 3. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 PCIe storage devices | |
| USB | Intel Z590 Chipset |
| 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel | |
| 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) | |
| 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) | |
| 1x USB 2.0 Type-A port on the back panel | |
| Hub-GL850G | |
| 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) | |
| Audio | Realtek ALC4080 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x Intel I225-V 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth | 1x Intel Wi-Fi 6E AX210 |
| 1x Intel The Wireless module is pre-installed in the M.2 (Key-E slot) | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth 5.2, FIPS, FISMA | |
| 1. Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in WIN10 21H1. | |
| 2. Bluetooth 5.2 will be ready in WIN10 21H1. | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 1x 6-pin PCIE power connector | |
| 6x SATA 6Gb/s connectors | |
| 3x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 2 10Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 6x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x TPM module connector | |
| 1x Clear CMOS jumper | |
| 1x TBT connector (supports RTD3) | |
| 1x Tuning Controller connector | |
| LED Feature | 1x EZ LED Control switch |
| 2x 4-pin RGB LED connectors | |
| 2x 3-pin RAINBOW LED connectors | |
| 4x EZ Debug LED | |
| Back panel ports | 1. DisplayPort |
| 2. USB 2.0 | |
| 3. USB 3.2 Gen 1 5Gbps Type-A | |
| 4. 2.5G LAN Port | |
| 5. Wi-Fi / Bluetooth Antenna | |
| 6. HD Audio Connectors | |
| 7. HDMI | |
| 8. Flash BIOS Button | |
| 9. USB 3.2 Gen 1 5Gbps Type-A | |
| 10. USB 3.2 Gen 2 10Gbps Type-A | |
| 11. USB 3.2 Gen 2x2 20Gbps Type-C | |
| 12. Optical S/PDIF OUT | |
| Dimensions | ATX Form Factor |
| 12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
| Operating System | Support for Windows 10 64-bit |
| Box content | 1. MSI does not guarantee the risks or damages caused by changing the cover. |
| 2. These pictures are for reference only and may vary without notice. | |
