Specifications:
| © 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |

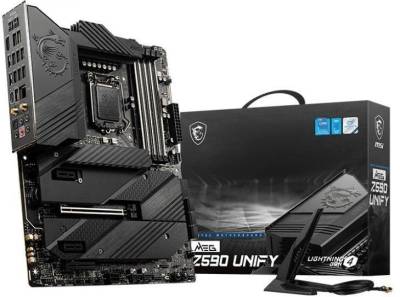

| Product Code | Z590 UNIFY |
| Qucik Spec | |
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel Z590 Chipset |
| DDR4 Memory | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 1 |
| PCI-E x4 | 1 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 4 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel I225-V 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E AX210 |
| USB 3.2 ports (Front) | 1(Gen2, Type C), 2(Gen1, Type A) |
| USB 3.2 ports (Rear) | 1(Gen2x2, Type C), 1(Gen2, Type A), 8(Gen1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Audio ports (Rear) | 5+ Optical S/PDIF (Realtek ALC4080 Codec) |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| CrossFire | Y |
| Operating System | Support for Windows 10 64-bit |
| Detailed Spec | |
| Processor | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Processor socket LGA1200 | |
| Chipset | Intel Z590 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB |
| Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) | |
| Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 5600 MHz | |
| 1DPC 2R Max speed up to 4800+ MHz | |
| 2DPC 1R Max speed up to 4400+ MHz | |
| 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC mode, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Expansion Slots | 1x PCIe x16 slot (PCI_E2, from CPU) |
| Supports up to PCIe 4.0 x16 with11th Gen CPU | |
| Supports up to PCIe 3.0 x16 with10th Gen CPU | |
| 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset) | |
| 2x PCIe 3.0 x1 slots (from Z590 chipset) | |
| 1. PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS selection. | |
| 2. PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty. | |
| Multi-GPU | Supports 2-Way AMD CrossFire Technology |
| Onboard Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| 1. Available for the processor with integrated graphics. | |
| 2. Graphics specifications may vary depending on the CPU installed. | |
| Storage | 6x SATA 6Gb/s ports (from Z590 chipset) |
| 4x M.2 slots (Key M) | |
| M2_1 (from CPU) | |
| Available only on 11th Gen Intel CPU | |
| Supports up to PCIe 4.0 x4 | |
| Supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_2, M2_3 slots | |
| Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default) | |
| Support up to PCIe 4.0 x4 (from CPU, by BIOS selection) | |
| M2_2 supports 2242/ 2260/ 2280 storage devices | |
| M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_4 slot (from Z590 chipset) | |
| Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices | |
| Supports Intel Smart Response Technology for Intel Core processors | |
| 1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| 2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot. | |
| 3. Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |
| 4. PCIe 4.0 specification is available only on 11th Gen Intel CPU. | |
| 5. PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | Intel Z590 Chipset |
| 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel | |
| 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector) | |
| 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector) | |
| 2x USB 2.0 ports on the back panel | |
| Hub-GL850G | |
| 4x USB 2.0 ports through internal USB 2.0 connector | |
| Audio | Realtek ALC4080 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x Intel I225-V 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth | Intel WiFi 6E AX210 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth 5.2, FIPS, FISMA | |
| 1. Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in WIN10 21H1. | |
| 2. Bluetooth 5.2 will be ready in WIN10 21H1. | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 2x 8-pin ATX 12V power connectors | |
| 1x 6-pin ATX PCIE power connector | |
| 6x SATA 6Gb/s connectors | |
| 4x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 2 10Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 6x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x 2-pin Thermal Sensors connector | |
| 1xTPM module connector | |
| 1x Tuning Controller connector | |
| 1x TBT connector (Supports RTD3) | |
| LED Features | 1x 2-Digit Debug Code LED |
| 4x EZ Debug LED | |
| 1x 4-pin RGB LED connector | |
| 2x 3-pin RAINBOW LED connectors | |
| 1x 3-pin JCORSAIR LED connector | |
| Back panel ports | 1. Clear CMOS Button |
| 2. USB 2.0 | |
| 3. USB 3.2 Gen 1 5Gbps (Type-A) | |
| 4. USB 3.2 Gen 1 5Gbps (Type-A) | |
| 5. 2.5G LAN | |
| 6. Wi-Fi / Bluetooth | |
| 7. HD Audio Connectors | |
| 8. Flash BIOS Button | |
| 9. HDMI | |
| 10. USB 3.2 Gen 2 10Gbps (Type-A) | |
| 11. USB 3.2 Gen 2x2 20Gbps (Type-C) | |
| 12. Optical S/PDIF-Out | |
| Dimensions | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| ATX Form Factor | |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows 10 64-bit |
| Box content | 1. MSI does not guarantee the risks or damages caused by changing the cover. |
| 2. These pictures are for reference only and may vary without notice. | |
