Specifications:
| © 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |

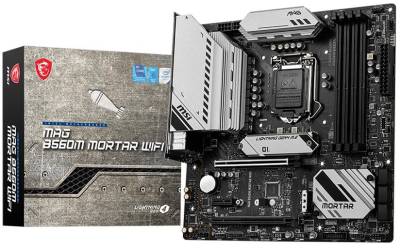

| Product Code | B560M MORTAR WIFI |
| Qucik Spec | |
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel B560 Chipset |
| DDR4 Memory | 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 1 |
| SATAIII | 6 |
| M.2 Slot | 2 |
| LAN | 1x Realtek 8125B 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E AX210 |
| USB 3.2 ports (Front) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 1(Gen 2x2, Type C), 3(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 4 |
| Audio ports (Rear) | Realtek ALC897 Codec |
| DisplayPort | 1 |
| HDMI | 1 |
| Form Factor | M-ATX |
| CrossFire | Y |
| Operating System | Support for Windows 10 64-bit |
| Detailed Spec | |
| Processor | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Processor socket LGA1200 | |
| 1. Please go to intel.com for compatibility information. | |
| Chipset | Intel B560 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 128GB |
| Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) | |
| Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 5066+ MHz | |
| 1DPC 2R Max speed up to 4600+ MHz | |
| 2DPC 1R Max speed up to 4266+ MHz | |
| 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Expansion Slot | 2x PCIe x16 slots |
| 1. Support x16/ x4 | |
| 2. PCI_E1 (from CPU) | |
| 1. Support up to PCIe 4.0 for 11th Gen Intel CPU | |
| 2. Support up to PCIe 3.0 for 10th Gen Intel CPU | |
| 3. PCI_E3 (From B560 chipset) | |
| 1. Support up to PCIe 3.0 | |
| 1x PCIe 3.0 x1 slot | |
| 1. PCI_E2 (From B560 chipset) | |
| 1. PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS. | |
| Onboard Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz | |
| 1. Available only on processors featuring integrated graphics | |
| 2. Graphics specifications may vary depending on the CPU installed. | |
| Multi-GPU | Supports 2-way AMD CrossFire Technology |
| Storage | 6x SATA 6Gb/s ports (from B560 chipset) |
| 2x M.2 slots (Key M) | |
| M2_1 slot | |
| 1. Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) | |
| 2. Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) | |
| 3. Supports 2242/ 2260/ 2280 storage devices | |
| M2_2 slot (From B560 chipset) | |
| 1. Supports up to PCIe 3.0x4 | |
| 2. Supports 2242/ 2260/ 2280 storage devices | |
| 3. Intel Optane Memory Ready | |
| Supports Intel Smart Response Technology for Intel Core processors | |
| 1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. | |
| 2. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |
| USB | Intel B560 Chipset |
| 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) | |
| 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) | |
| 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector | |
| 4x USB 2.0 ports on the back panel | |
| USB Hubs ASM1074 | |
| 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| Hub-GL850G | |
| 4x USB 2.0 ports are available through the internal USB 2.0 connectors | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth | ntel WiFi 6E AX210 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth 5.2/ | |
| 2, FIPS, FISMA | |
| 1. Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in WIN10 21H1. | |
| 2. Bluetooth 5.2 will be ready in WIN10 21H1. | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 2 10Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 2x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x Clear CMOS jumper | |
| 1x TPM module connector | |
| 1x Tuning Controller Connector | |
| 1x TBT connector (Supports RTD3) | |
| LED Feature | 1x 4-pin RGB LED connector |
| 2x 3-pin RAINBOW LED connectors | |
| 4x EZ Debug LED | |
| Back panel ports | 1. USB 2.0 |
| 2. DisplayPort | |
| 3. USB 3.2 Gen 1 5Gbps Type-A | |
| 4. 2.5G LAN Port | |
| 5. Wi-Fi / Bluetooth Antenna | |
| 6. HD Audio Connectors | |
| 7. HDMI | |
| 8. USB 3.2 Gen 2x2 20Gbps Type-C | |
| 9. USB 3.2 Gen 1 5Gbps Type-A | |
| 10. Optical S/PDIF OUT | |
