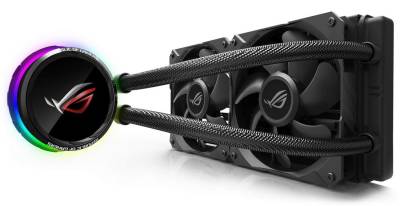

ASUS ROG RYUO 240 specification sheet

Overview:

ROG Ryuo is a series of high-performance CPU liquid coolers designed for compact and mid-sized gaming builds. As the first CPU coolers from ROG, the Ryuo series brings the performance, features and design details you expect from ROG to a vital part of your gaming system. Featuring an embedded 1.77-inch LiveDash color OLED display that enables monitoring of real-time system stats as well as displaying personalized image or animation, ROG Ryuo lets you ensure your system both runs and looks its best. Together with Aura Sync support for harmonized RGB lighting effects, ROG Ryuo coolers deliver stunning aesthetics along with game-changing performance.

Features:

LiveDash OLED
ROG Ryuo is the world's first AIO cooler to feature an embedded 1.77-inch LiveDash color OLED that displays useful system information*, such as temperatures, voltages, fan speeds, or frequencies. You can also customize LiveDash to display a customized image or animation** highlighting your clan insignia or gamertag.

Armoury Crate
Armoury Crate is a software utility that provides centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips, with the new Aura Creator ready. The software also provides control of settings for a select and growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news feeds areas to help you stay in touch with the ROG gaming community.

Subtle, striking, sleek
Infused with Aura RGB lighting, Ryuo adds a subtle glow that helps to highlight the CPU as the heart of any build. The lighting color and effects can be customized to match the OLED display and system colors for a unified look that's totally your own.

PERFECT SYNCHRONIZATION
The impact of Aura RGB lighting can be further enhanced with ASUS Aura Sync, which allows harmonized lighting effects with other Aura-enabled system components and external accessories. Aura software provides complete control of lighting across all compatible devices, so you can dial in the vibe you want to display quickly and easily.

Optimized fan design
The ROG radiator fan is specifically tuned to deliver optimum performance with Ryuo radiators, generating 81CFM/5.0mm H2O for superior cooling efficiency.

Improved pump design
ROG Ryuo is equipped with the latest cooling-plate design featuring micro-channels that provide more thermal dissipation area for processor heat. This innovative feature reduces thermal resistance for more efficient performance and cooler temps.

Four-pin PWM pump and fan control
With four-pin PWM control for both the pump and radiator fans, ROG Ryuo delivers precise speed control for the perfect balance of performance and acoustics in every scenario.

Extended compatibility
ROG Ryuo is compatible with a wide range of Intel and AMD motherboard platforms, giving you the flexibility to pair it with your choice of processor. It also comes fitted with 38cm of tubing to make mounting and routing easier.

CPU socket support

• Intel - LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
• AMD - AM4, TR4*

Specifications:

© 2020 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ASUS ROG RYUO 240
Water Block	Water Block Dimension: 80 x 80 x 45 mm
	Block Material (CPU plate): Copper
	CPU Socket Support: Intel: LGA 115x, 1366, 2011, 2011-3, 2066 ; AMD: AM4, TR4
Radiator	Radiator Dimension: 272 x 121 x 27 mm
	Radiator Material: Aluminum
	Tube: Sleeved Rubber tube
	Tube Length: 380 mm
Fan	Fan: 2 x ROG RYUO FAN Model 12
	Fan size: 2 Fan Slots (120mm)
	Fan Dimension: 120 x 120 x 25 mm
	Fan Speed: 800 ~ 2500 RPM +/- 10 %
	Fan Static Pressure: 5.0 mmH2O
	Fan Air Flow: 80.95 CFM / 137.5 m3h
	Fan Noise: 37.6 dB(A)
	Control Mode: PWM
Special Features	OLED Display: 1.77 " Full Color OLED
	AURA Sync Support: Yes
Package Content	ROG RYUO 240 Liquid Cooler
	Accesory Pack of Scews and brackets
	2 x 120mm ROG Ryuo Fan Model 12
	USB Cable for Software control
	Thermal compound (pre-applied)
	Quick Start Guide
Compatibility	Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
	AMD: AM4, TR4
Note	*The mounting bracket is bundled with TR4 CPU Package, not in the RYUO's package
	** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
	* Hardware monitor and fan control is optimized for ASUS motherboards
	** for control radiator FAN from the Y-Cable on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler
