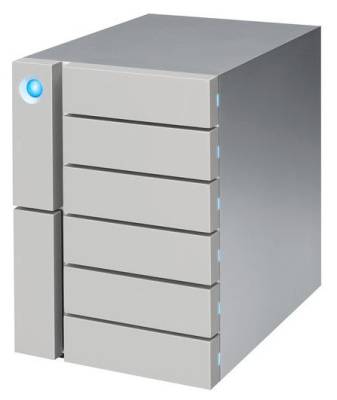

EH-L84T6BT specification sheet

Overview:

Designed to protect immense amounts of 4K footage, along with the speed to edit 4K video, the 6big 84TB 6-Bay Thunderbolt 3 RAID Array from LaCie offers up to 84TB of storage split over six hot-swappable 14TB 3.5" IronWolf Pro NAS hard drives, each of which utilizes one of the array's SATA III 6 Gb/s drive bays. Each drive is equipped with a minimum cache of 128MB and a rotational speed of 7200 rpm, both of which help to ensure uninterrupted data transfers. The array itself is equipped with two 40 Gb/s Thunderbolt 3 ports and one 10 Gb/s USB 3.1 port, each of which use USB Type-C connectivity. For those whose system does not have a USB Type-C port, the 6big is compatible with USB 3.0 and USB 2.0 via an included USB Type-C to Type-A adapter cable.

Features:

Fast I/O
For the 6big, LaCie harnessed the performance potential of the Thunderbolt 3 I/O and its fast data transfer rates. They added a hardware RAID controller and 7200 rpm drives, resulting in read speeds of up to 1400 MB/s in RAID 0 and 1200 MB/s in RAID 5.

For Lightning-Fast Video Workflows
Thunderbolt 3 can slash time off nearly every task in a post-production workflow. Ingest hours of raw footage from a Blackmagic Cinema Camera into Adobe Premiere and edit multiple streams of PreRes 422 HQ, ProRes 444 XQ, and uncompressed 10-bit and 12-bit HD video. For big projects packed with high-def clips, thumbnail and preview rendering becomes much more responsive.

For Your Smartest Workspace
With double the video bandwidth of its predecessor, Thunderbolt 3 lets you daisy-chain dual 4K displays or a single 5K display to the LaCie 6big. With two 4K displays, you can spread out your workspace by dedicating one display to your timeline and the other to previewing 4K footage. It's even possible to power a compatible laptop through the Thunderbolt 3 connection, which delivers up to 15W to compatible laptops.

Consolidate
Instead of buying a new storage device every time you need more capacity, invest up front in a future-proof, RAID-protected solution. Improve data access and security, which can save money in the long term.

Organize
Divide your storage into multiple volumes according to your workflow. Create one safe volume for backing up source media, another for ingesting transcoded clips and current projects, and another for archiving final footage.

Expand
Thunderbolt 3 lets you daisy chain up to six devices to a computer via a single cable. So you could connect up to six LaCie 6big arrays together for storage expansion.

Enterprise-Class Drives
The LaCie 6big uses IronWolf Pro drives that are designed for multi-drive environments wide a wide range of capacities. IronWolf Pro drives also feature RAID optimization, improved power management, and workloads of up to 300TB per year.

Peace of Mind
IronWolf Pro drives are covered with a 5-year limited warranty that includes Rescue Data Recovery Services. If something goes wrong, your drive will be replaced and your data recovered with one in-lab data recovery service at no additional cost.

No Downtime
If your system fails, simply make a claim and you'll have a replacement unit within a few days, with 25 days to return the failed unit.

Hardware RAID Modes
RAID 0 provides the fastest data speeds with no redundancy, while RAID 5 and RAID 6 provide speed and data redundancy. RAID 5 can sustain one drive failure without any data loss, while RAID 6 can sustain two simultaneous drive failures with no data loss.

LaCie RAID Manager
With Powerful features and a user-friendly setup, LaCie's RAID Manager gives you an intuitive interface to administer the LaCie 6big.

Compact Footprint
Get massive capacity on your desktop in a footprint that's smaller than an iPad Air.

Front-Accessible Drives
Conveniently and quickly remove and replace drives from the front of the product. Keep track of drive health and RAID build status with the front-facing drive status LEDs.

Aluminum Enclosure
Dissipates heat better than plastic.

Advanced Cooling
Thermoregulated fans pull heat away from the internal components. Because the fans are redundant, the LaCie 6big remains operational even if a fan fails.

USB 3.1
For universal compatibility, connect to USB Type-C laptops and even USB 3.0 computers via the included USB Type-C to USB Type-A cable.

Kensington Lock Compatible
Tether the product to a fixture to help prevent theft.

Specifications:

© 2020 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	EH-L84T6BT
General
Number of Bays	6 x 3.5"
Connections	2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
	1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s))
Compatible Drive Interface	SATA III
Form Factor	Desktop
Maximum RAID Transfer Rate	1400 MB/s (Read/Write in RAID 0)
	1200 MB/s (Read in RAID 5)
	1150 MB/s (Write in RAID 5)
RAID Modes	RAID 0, 1, 10, 5, 50, 6, 60
Hot-Swap Support	Yes
Operating System Support	Windows, macOS/OS X
OS Compatibility	Windows 8
	macOS 10.10
Drives
Total Raw Capacity	84 TB (6 x 14 TB)
Type	Hard Disk Drive
Rotational Speed	7200 rpm
Interface	SATA III
Cache Memory per Drive	128 MB
Electrical
Power Source	Internal Power Supply
PSU Wattage	1 x 250 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Security
Security Features	Kensington Security Slot
Physical
Material of Construction	Aluminum
Cooling	2 x Fans
Status Monitoring	LED Indicator
Dimensions (W x H x D)	6.3 x 8.9 x 9.3" / 161.0 x 225.0 x 237.0 mm
Weight	21.8 lb / 9.9 kg
