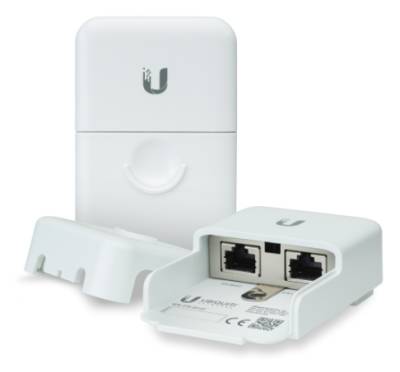

Ubiquiti Ethernet Surge Protector - Gen 2
Short Description
Ubiquiti ETH-SP-G2 Ethernet Surge Protector - Gen 2, Surge Voltage from 100V/s to 1kV/µs
© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.
Long Description
The specifications displayed below are for the entire series of products and may not apply to this product or model, please refer to the above description for the correct details of this model.
Overview:
ESD Protection for Outdoor High-Speed Networks
Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
Features:
ESD Protection for Outdoor PoE Devices
Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.
Additional ESD Protection
All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.
Plug and Play Installation
Connect the ground and Ethernet cables in between your network devices.
Specifications:
| © 2018 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | UB-ETH-SP-GEN2 |
| Dimensions | 91 x 61 x 32.5 mm |
| (3.58 x 2.4 x 1.28") |
| Weight | 80 g |
| (2.82 oz) |
| Interface Connections | (2) RJ45 Female Connectors |
| ESD/EMP Protection | Absorbing Transient Current with Response to |
| Surge Voltage from 100V/s to 1kV/µs |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Maximum Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Maximum Insulation Resistance | 1G ohm @ 50V |
| Maximum Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| IEEE 802.3af PoE Support | Yes |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
| Operating Temperature | -30 to 65° C |
| (-22 to 149° F) |
| Operating Humidity | 10 to 90% Noncondensing |
