Features:

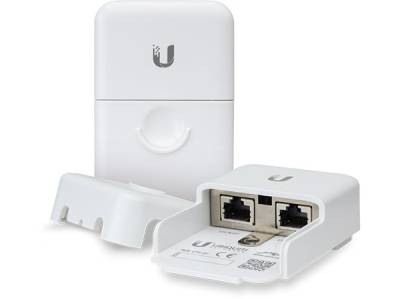

Introducing the UB-ETHSP, Ethernet Surge Protector, from Ubiquiti Networks. It is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges.
The ETH-SP is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility. Compatible with 10/100/1000 Mbps Networks
It is ideal for WISP Networks as damaging ESD attacks and surges will be absorbed by the ETH-SPs and safely discharged into the ground.
Specifications:
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications and features | |
| Product Code | UB-ETHSP |
| Interface Connections | (2) RJ45 Female Connectors |
| ESD/EMP Protection | Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Maximum Impulse Spark-over Voltage | 700V @ 1kV/µs |
| Discharge Current | 5kA (Maximum), 0.5kA (Normal) |
| Maximum Insulation Resistance | 1G ohm @ 50V |
| Maximum Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| IEEE 802.3af PoE Support | Yes |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
| Operating Temperature | -30 to 65° C |
| Operating Humidity | 10 to 90% Noncondensing |
| Dimensions | 91 x 61 x 32.5 mm |
| Weight | 80 g |
