Specifications:
| © 2017 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | MB-iS1200SPLR |
| Essentials | |
| Product Collection | Intel Server Board S1200SP Family |
| Code Name | Products formerly Silver Pass |
| Compatible Product Series | Intel Xeon Processor E3-1200 v5 Family |
| Board Form Factor | uATX |
| Chassis Form Factor | Pedestal |
| Socket | 1 |
| Integrated Systems Available | No |
| Integrated BMC with IPMI | IPMI 2.0 |
| TDP | 80 W |
| Included Items | (1) Server Board; (4) SATA Data Cables; (1) I/O Shield; (1) Attention Document; (1) Quick Start User's Guide; (1) Quick Configuration Label |
| Recommended Customer Price | N/A |
| Board Chipset | Intel C236 Chipset |
| Target Market | Small and Medium Business |
| Supplemental Information | |
| Embedded Options Available | No |
| Datasheet | View now |

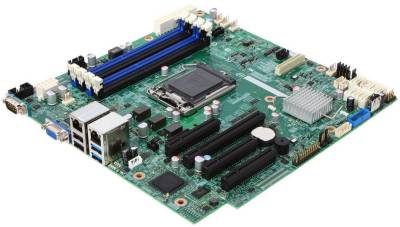

| Description | An entry-level single socket board with Intel C236 chipset supporting one Intel Xeon Processor E3-1200 v5 family, 4 UDIMMs, Dual integrated 1GBaseT Ethernet. Supports eight SATA3 ports, M.2 SATA SSD (42mm) and Intel Integrated RAID Module. |
| Additional Information URL | View now |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4 ECC UDIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 68.256 GB/s |
| Physical Address Extensions | 40-bit |
| Max # of DIMMs | 4 |
| ECC Memory Supported <sup> </sup> | Yes |
| DIMM Type | UDIMM |
| Graphics Specifications | |
| Integrated Graphics <sup> </sup> | Yes |
| Graphics Output | Display Port, VGA |
| Expansion Options | |
| PCI Express Revision | 3 |
| Max # of PCI Express Lanes | 20 |
| PCIe x4 Gen 3 | 1 |
| PCIe x8 Gen 3 | 1 |
| PCIe x16 Gen 3 | 1 |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Connector for Intel Integrated RAID Module | 1 |
| I/O Specifications | |
| USB Revision | 2.0 & 3.0 |
| # of USB Ports | 9 |
| Total # of SATA Ports | 8 |
| RAID Configuration | Software RAID RST (0,1,10,5) and ESRT2 (0,1,10) |
| # of Serial Ports | 1 |
| # of LAN Ports | 2 |
| Integrated LAN | 2x 1GbE |
| Embedded USB (eUSB) Solid State Drive Option | No |
| Integrated InfiniBand | No |
| Package Specifications | |
| Max CPU Configuration | 1 |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel Virtualization Technology for Directed I/O (VT-d) <sup> </sup> | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Node Manager | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Transparent Supply Chain | |
| TPM Version | 2 |
| Security & Reliability | |
| Intel Trusted Execution Technology <sup> </sup> | Yes |
