MU736 specification sheet

View this product online / Buy now | Print this page print

Huawei M.2 Mini PCIe Internal 3.75G HSPA+ Module, *Download: 21Mbps, Upload: 5.76Mbps

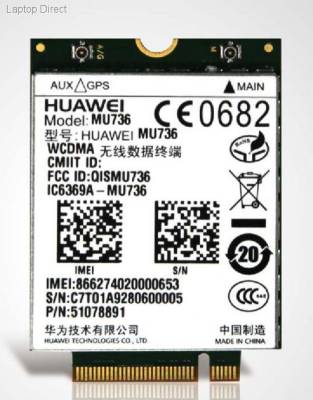

MU736 Huawei M.2 Mini PCIe Internal 3.75G HSPA+ Module, *Download: 21Mbps, Upload: 5.76Mbps

Short Description

Huawei M.2 Mini PCIe Internal 3.75G HSPA+ Module, *Download: 21Mbps, Upload: 5.76Mbps

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

The specifications displayed below are for the entire series of products and may not apply to this product or model, please refer to the above description for the correct details of this model.

Overview:

The MU736 is a HSPA+ module with NGFF interface, supporting Penta-band (B1/B2/B4/B5/B8) for worldwide network coverage, low power consumption, GPS, and global carrier certifications, enabling easier and more flexible design and integration into end devices. In addition, the MU736 supports all NGFF features to optimize performance, power consumption, and usability.
MU736 is an ideal choice for PC OEMs and ODMs to use in long battery life, thin form factor devices such as Ultrabooks and tablets requiring best in class cellular platform KPIs (e.g. performance, size, and current consumption).


Specifications:

© 2016 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeMU736spacer
Size
Height 42mm
Width 30mm
Depth 2.3mm
Weight <6g
Form Factor M.2
Bands Penta-band WCDMA/HSPA/HSPA+ : 2100/1900/900/850/AWS MHz
Quad-band EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Data Transfer Rate WCDMA PS: UL (384 kbps) / DL (384 kbps)
UL/DL HSPA: UL (5.76 Mbps)/ DL (7.2 Mbps)
UL/DL HSPA+: UL (5.76 Mbps)/ DL (21Mbps)
GPRS/EDGE: Multi-slot Class 33, Class B
Interface Antenna interfaces x 2
M.2 Socket 2
USB 2.0 interface high speed
Power supply
UICC interface
Power Supply Supply voltage range: 3.135V~4.4V (3.3 V recommended)
Voice /
Temp Range Normal operation: - 10°C to +55°C
Extended operation: -20°C to +70°C
Storage: -40°C to +85°C
GPS/Glonass GPS Standalone, A-GPS
Special Features SIM Hotswap
BodySAR
Ultrabook feature support (ACT, WiFi Offload, DPTF)
Tunable Antenna
Supporting MO and MT
Supporting formats of PDU
Point-to-point and cell broadcast
Operating System Windows 7 / Windows 8 / Android 4.0 or above
Approvals CE
FCC
GCF
PTCRB
CCC
NCC
RoHS/Halogen free
Global operator TA
